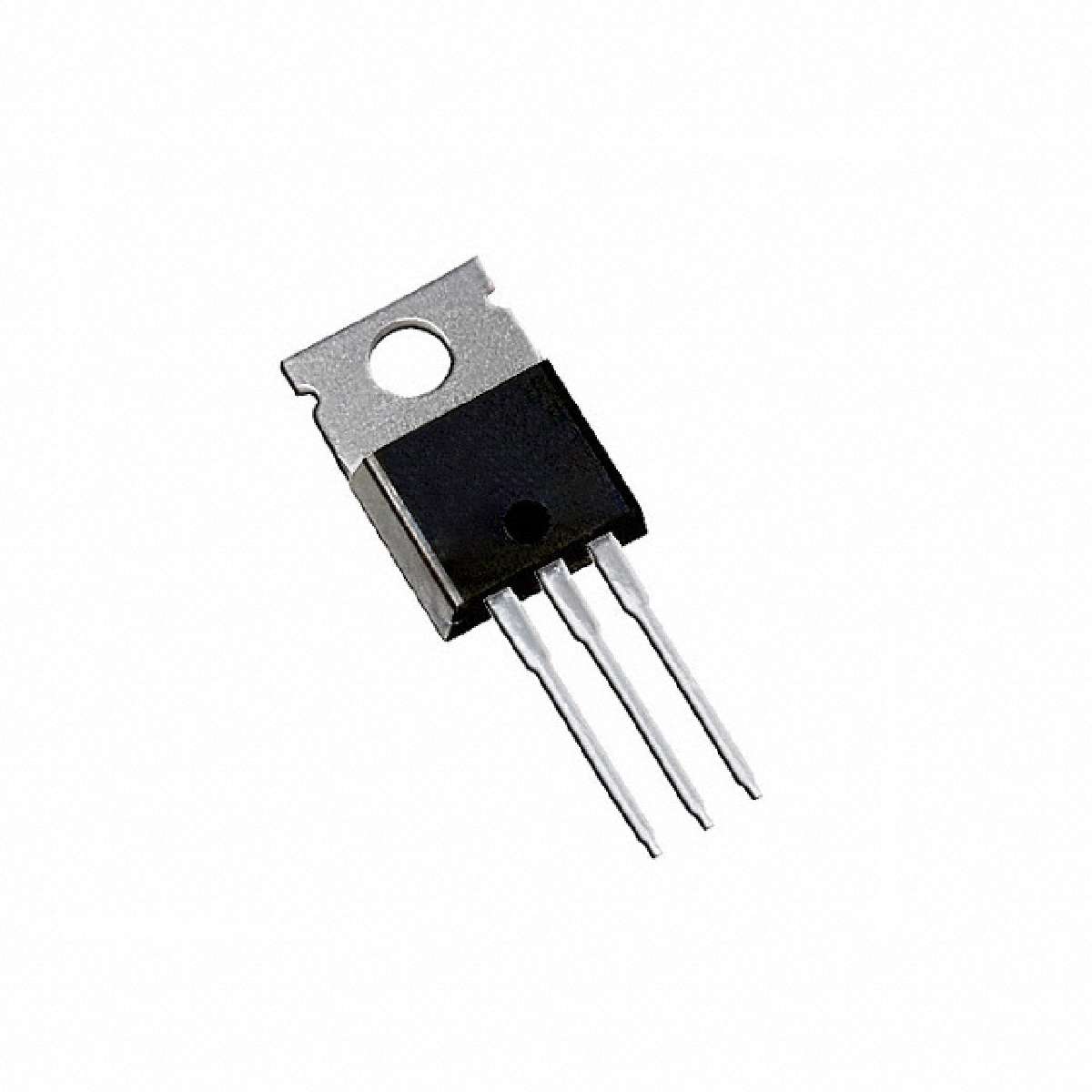

VS-30CTH02PBF图片1

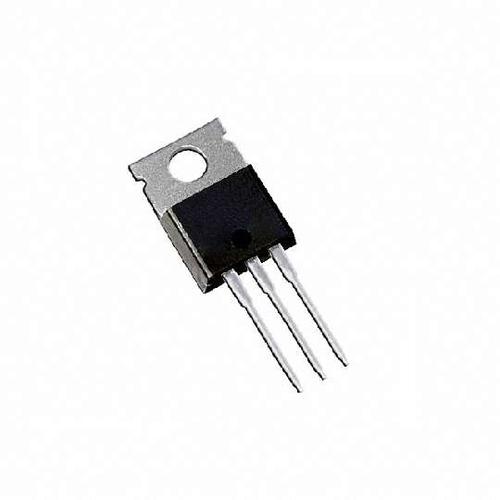

VS-30CTH02PBF图片2
VS-30CTH02PBF图片3
VS-30CTH02PBF图片4
VS-30CTH02PBF图片5
VS-30CTH02PBF图片6
VS-30CTH02PBF图片7
VS-30CTH02PBF图片8
VS-30CTH02PBF图片9
VS-30CTH02PBF图片10
VS-30CTH02PBF图片11
VS-30CTH02PBF图片12
VS-30CTH02PBF概述

VISHAY  VS-30CTH02PBF  快速/超快二极管, 双共阴极, 200 V, 30 A, 1.05 V, 30 ns, 200 A

The is a Hyperfast™ Recovery Rectifier specifically designed with optimized performance of forward voltage drop. The planar structure and the platinum doped life time control, guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in the output rectification stage of SMPS, UPS, DC/DC converters as well as freewheeling diode in low voltage inverters. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.

.
Low forward voltage drop
.
Low leakage current
.
Fully isolated package
VS-30CTH02PBF中文资料参数规格
技术参数

正向电压 1.05V @15A

反向恢复时间 35 ns

正向电流 30 A

最大正向浪涌电流(Ifsm) 200 A

正向电压Max 1.05 V

工作温度Max 175 ℃

工作温度Min -65 ℃

封装参数

安装方式 Through Hole

引脚数 3

封装 TO-220-3

外形尺寸

长度 10.54 mm

宽度 4.7 mm

高度 8.89 mm

封装 TO-220-3

物理参数

工作温度 -65℃ ~ 175℃

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Each

制造应用 Power Management, Industrial, Motor Drive & Control

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买VS-30CTH02PBF
型号: VS-30CTH02PBF
描述:VISHAY  VS-30CTH02PBF  快速/超快二极管, 双共阴极, 200 V, 30 A, 1.05 V, 30 ns, 200 A
替代型号VS-30CTH02PBF
型号/品牌 代替类型 替代型号对比

VS-30CTH02PBF

VISHAY 威世

当前型号

当前型号

VS-30CTH02-M3

威世

类似代替

VS-30CTH02PBF和VS-30CTH02-M3的区别
