TMBS - Trench MOS 势垒肖特基整流器,30A 至 80A,Vishay SemiconductorVishay 的 Trench MOS 势垒肖特基 TMBS 整流器系列包含专利 Trench 结构。 与平面肖特基整流器相比,TMBS 整流器可提供多个优势。 工作电压为 45V 及更高时平面肖特基整流器就失去了其快速转换速度的优势,且低正向压降到极度程度。 专利型 TMBS 结构通过少量缩减向漂移区域的载体注入来解决这些问题,从而最大程度减少积累电荷并提高转换速度。专利 Trench 结构 提高交流/直流开关模式电源和直流/直流转换器的效率 高功率密度和低正向电压 ### 特点### 肖特基整流器,Vishay Semiconductor
**Features:**
* Trench MOS Schottky Technology
* Low Forward Voltage Drop, Low Power Losses
* High Efficiency Operation
* Low Thermal Resistance
* Meets MSL Level 1, Oer J-STD-020, LF Maximum Peak of 245°C For TO-263AB Package
* Solder Dip 260°C, 40 s For TO-220AB, ITO-220AB and TO-262AA Package
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
**Applications:
**For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection.
正向电压 0.79 V
热阻 2.5℃/W RθJC
正向电流 60 A
最大正向浪涌电流(Ifsm) 320 A
正向电压Max 790 mV
正向电流Max 60 A
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 3

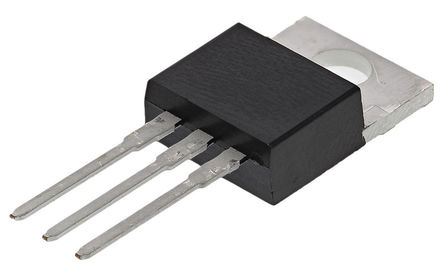

封装 TO-220-3
长度 10.54 mm
宽度 4.7 mm
高度 15.32 mm
封装 TO-220-3
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V60100C-E3/4W Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
V60100C-M3/4W 威世 | 功能相似 | V60100C-E3/4W和V60100C-M3/4W的区别 |
V60100C-E3/45 威世 | 功能相似 | V60100C-E3/4W和V60100C-E3/45的区别 |
