VISHAY VS-EPU3006-F3 快速/超快功率二极管, 单, 600 V, 30 A, 2 V, 45 ns, 200 A
The is an ultra-low VF soft-switching Ultra-fast Rectifier optimized for discontinuous critical mode DCM power factor correction PFC. The minimized conduction loss, optimized stored charge and low recovery current minimized the switching losses and reduce over dissipation in the switching element and snubbers. The device is also intended for use as a free-wheeling diode in power supplies and other power switching applications.
- .
- Low forward voltage drop
- .
- Ultra-fast recovery time
- .
- Designed and qualified according to JEDEC®-JESD47
正向电压 2V @30A
反向恢复时间 45 ns
正向电流 30 A
最大正向浪涌电流（Ifsm） 200 A
正向电压Max 2 V
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2

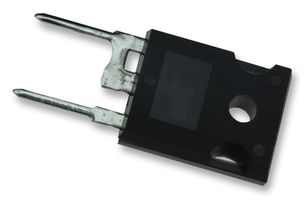

封装 TO-247-2
长度 15.87 mm
宽度 5.31 mm
高度 20.7 mm
封装 TO-247-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Each
制造应用 Power Management, Consumer Electronics, Automation & Process Control, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 无铅
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-EPU3006-F3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-APU3006-F3 威世 | 功能相似 | VS-EPU3006-F3和VS-APU3006-F3的区别 |
