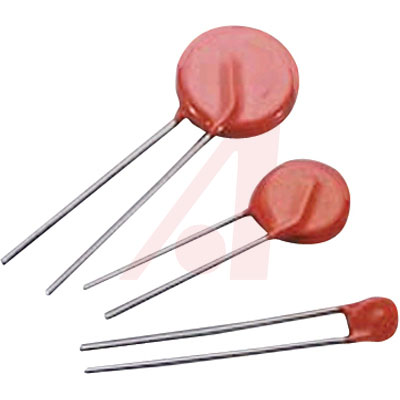

LITTELFUSE V130LA10CP 金属氧化物MOV压敏电阻
**Features:
**
* Radial Lead Metal-Oxide Varistors for the TVSS Environment**
**
* Recognized as “Transient Voltage Surge Suppressors”, UL File #E75961 to Standard 1449 and to CSA C22.2, No. 1; File #LR91788**
**
* High Energy Absorption Capability WTM: 45 J to 240 J 2 ms**
**
* High Peak Pulse Current Capability ITM: 6000 A to 9000 A 8/20 μs**
**
* Wide Operating Voltage Range VMACRMS: 130 V to 300 V**
**
* Available in Tape and Reel for Automatic Insertion; Also Available Crimped and/or Trimmed**
**
* Halogen Free
额定电压DC 130 V
额定电压AC 130 V
工作电压 130 VAC
电容 1900 pF
额定功率 80 W
电路数 1
钳位电压 340 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压AC Max 130 V
安装方式 Through Hole
封装 Disc 14mm
长度 12 mm
宽度 7.3 mm
高度 20 mm
封装 Disc 14mm
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V130LA10CP Littelfuse 力特 | 当前型号 | 当前型号 |
0071.1361.A2 Schurter | 类似代替 | V130LA10CP和0071.1361.A2的区别 |
0071.1361.T2 Schurter | 类似代替 | V130LA10CP和0071.1361.T2的区别 |
V130LT10AP 力特 | 功能相似 | V130LA10CP和V130LT10AP的区别 |
