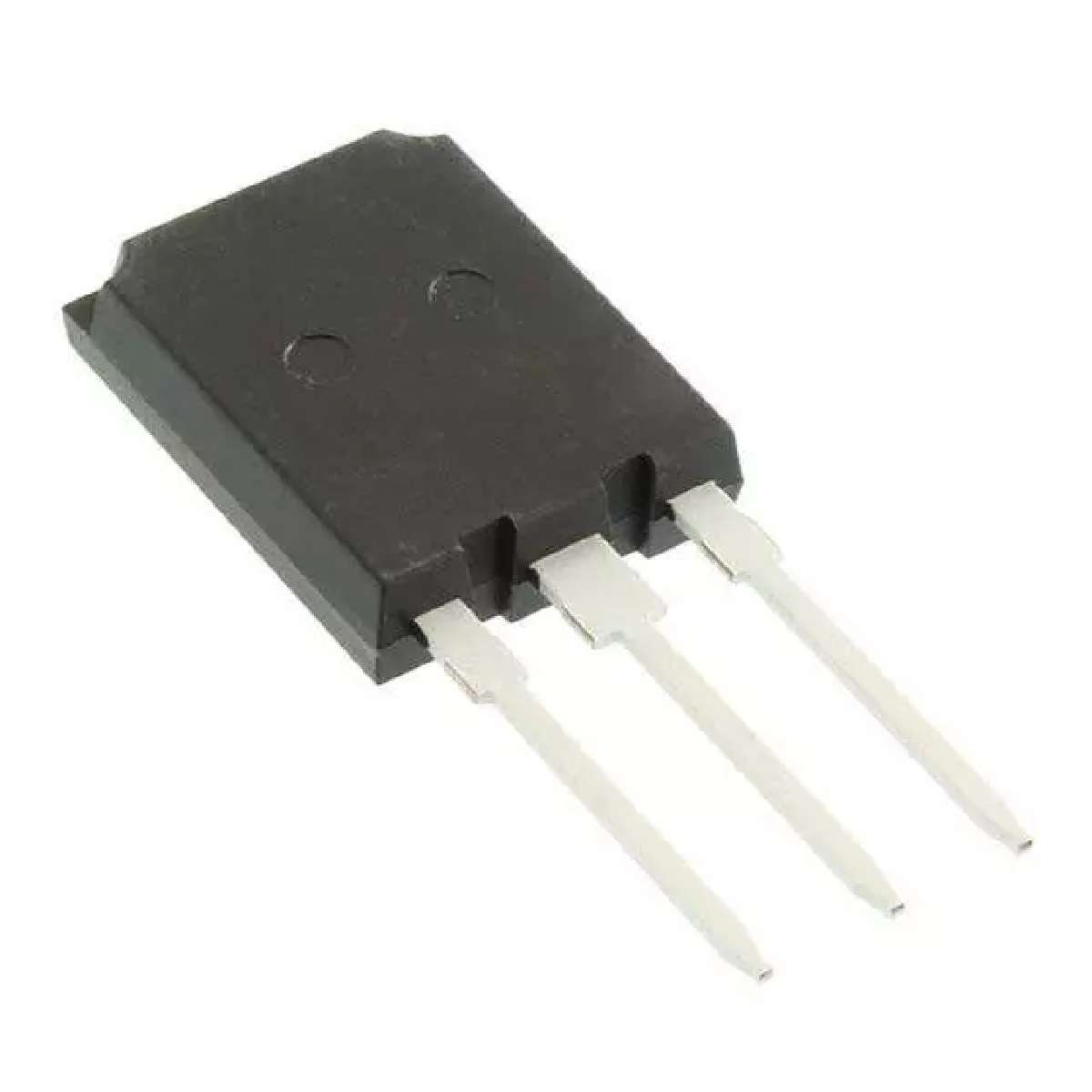

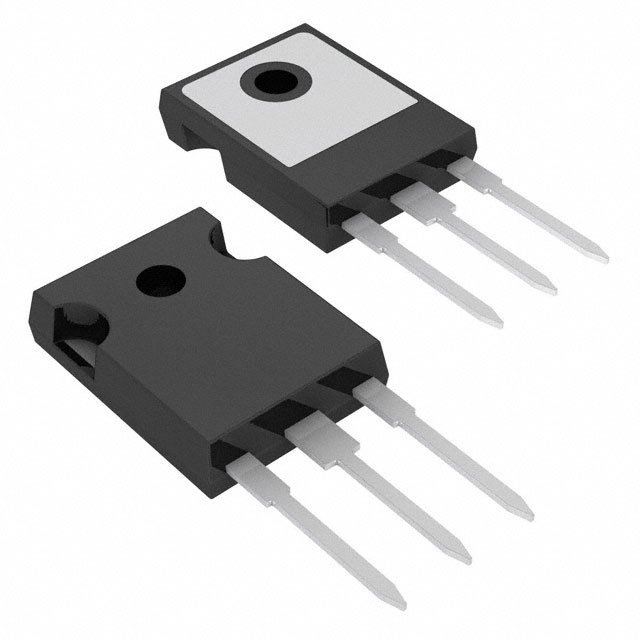

VISHAY VS-40CPQ045PBF 肖特基整流二极管
The 40CPQ...PbF center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
**Features:**
* 150°C T Operation
* Center Tap TO-247 Package
* Very Low Forward Voltage Drop
* High Frequency Operation
* High Purity, High Temperature Epoxy Encapsulation for Enhanced Mechanical Strength and Moisture Resistance
* Guard Ring for Enhanced Ruggedness and Long Term Reliability
* Lead Pb-Free PbF Suffix
* Designed and Qualified for Q101 Level
针脚数 3
正向电压 0.59 V
热阻 1.25℃/W RθJC
正向电流 40 A
最大正向浪涌电流(Ifsm) 3.5 kA
正向电压Max 490 mV
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 15.87 mm
宽度 5.31 mm
高度 20.7 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Each
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-40CPQ045PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-MBR4045WTPBF 威世 | 类似代替 | VS-40CPQ045PBF和VS-MBR4045WTPBF的区别 |
40CPQ045 威世 | 类似代替 | VS-40CPQ045PBF和40CPQ045的区别 |
