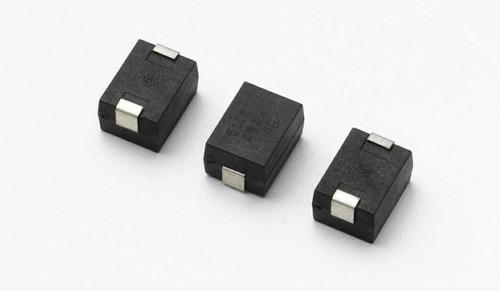

SM7 系列 675 VDC 510 V RMS 1200 V 钳位 1200 A 45 pF 径向引线 压敏电阻
Similar to a diode this MOV manufactured from is a nonlinear component. This device"s clamping current is 10 A and clamping voltage is 1200 V. Its maximum surge current is 1200 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This varistor has a voltage of 910 V. The maximum AC voltage rating is 510 VAC and the maximum DC voltage rating is 675 VDC. This product is 11.5 mm long, 6 mm tall and 8.3 mm deep. This device utilizes metal oxide technology. Its capacitance value is 45pF.
额定电压DC 675 V
额定电压AC 510 V
额定电流 1 mA
绝缘电阻 1000 MΩ
电容 45 pF
电路数 1
钳位电压 1.2 kV
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 675 V
额定电压AC Max 510 V
安装方式 Surface Mount
封装 SMD-2
长度 11.5 mm
宽度 8.3 mm
高度 6 mm
封装 SMD-2
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
