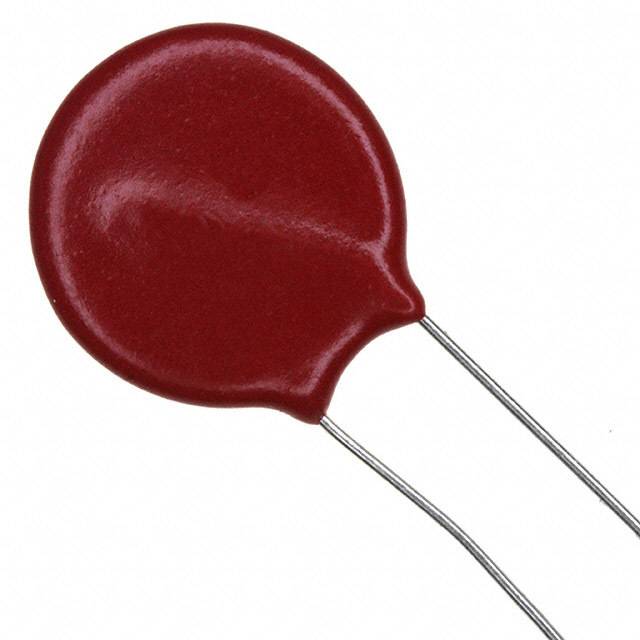

Varistor, 560V, 90J, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT
This MOV from is a nonlinear resistor, the resistance of it will change when different voltages are applied to it. This part has a pitch of 8.5 mm. Its maximum surge current is 4500 A. This device"s clamping current is 50 A and clamping voltage is 1120 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 300pF. The maximum AC voltage rating is 420 VAC and the maximum DC voltage rating is 560 VDC. This varistor has a voltage of 748 V. This product is 22.5 mm tall and 7.3 mm deep with a diameter of 17 mm. This device is made with metal oxide technology.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V420LC20AP Littelfuse 力特 | 当前型号 | 当前型号 |
V420LS20AP 力特 | 完全替代 | V420LC20AP和V420LS20AP的区别 |
V420LT20AP 力特 | 完全替代 | V420LC20AP和V420LT20AP的区别 |
V420LC20A 力特 | 完全替代 | V420LC20AP和V420LC20A的区别 |
