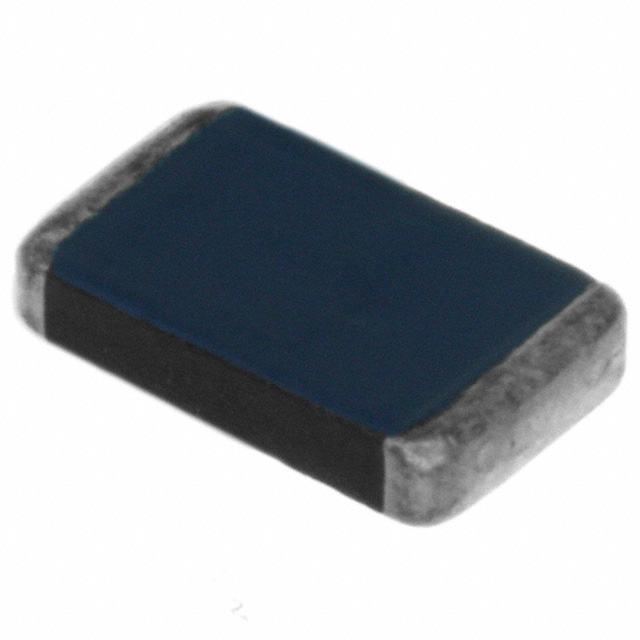

V390CH8T

LITTELFUSE  V390CH8T  TVS压敏电阻, CH系列, 250 V, 330 V, 650 V, 3220 [8552公制], 金属氧化物压敏变阻器 MOV

金属氧化物变阻器 - CH 系列

Littelfuse CH 系列金属氧化物变阻器采用表面安装。这些瞬态浪涌抑制器被制作成无铅芯片。 相比于传统的径向引线型设计，其显著的薄型设计可减少尺寸和重量，同时增加可靠性。

薄型

不同于传统金属氧化物变阻器，CH 系列采用无铅表面安装

无降低至环境温度为 +125°C

高浪涌额定值高达 400A，用于低电压设备

5 x 8 mm 芯片尺寸

提供电压从 14 V 至 274 V，能量额定值高达 8 J

### 产品应用信息

这些金属氧化物变阻器适用于包括低电压直流和离线电路板级保护在内的各种应用。

欧时:
Metal-Oxide Varistor 330Vrms CH

得捷:
VARISTOR 390V 250A 2SMD NO LEAD

立创商城:
V390CH8T

e络盟:
TVS压敏电阻, CH系列, 250 V, 330 V, 650 V, 3220 [8552公制], 金属氧化物压敏变阻器 MOV

艾睿:
Are you looking for a nonlinear resistor? This V390CH8T MOV from Littelfuse will exceed your needs! This device&s;s clamping current is 10 A and clamping voltage is 650 V. Its maximum surge current is 500 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product is 8.51 mm long, 2.03 mm tall and 5.26 mm deep. This varistor has a voltage of 390 V. Its capacitance value is 90pF. This device is made with metal oxide technology. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 330 VDC.

Allied Electronics:
CH SERVariable Restr 60pF 10A, Clamping 650V, Varistor 354 to 429V 3220, 8552 Case

富昌:
LOW PROFILE SM VARISTOR CH SERIES

Chip1Stop:
Var MOV 250VAC 330VDC 500A 390V SMD T/R

Verical:
Var MOV 250VAC/330VDC 250A 390V SMD T/R

Newark:
# LITTELFUSE  V390CH8T  TVS Varistor, 250 V, 330 V, CH Series, 650 V, 3220 [8552 Metric], Metal Oxide Varistor MOV

儒卓力:
**CH 3220 DC=330V CL=650V 7J **
