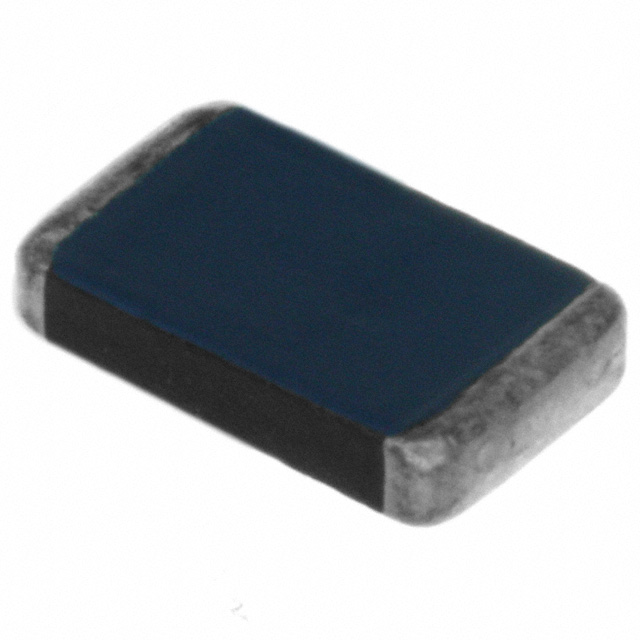

CH系列 18 VDC 14V RMS 47V 钳位 100A 1600pF 表面贴装 压敏电阻
A nonlinear resistor this MOV manufactured from will change resistance. Its maximum surge current is 250 A. This device"s clamping current is 5 A and clamping voltage is 47 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. Its capacitance value is 0.0016uF. This product is 8.51 mm long, 2.03 mm tall and 5.26 mm deep. This device is made with metal oxide technology. This varistor has a voltage of 22 V. The maximum AC voltage rating is 14 VAC and the maximum DC voltage rating is 18 VDC.
额定电压DC 18 V
额定电压AC 14 V
额定电流 1 mA
电容 1600 pF
电路数 1
钳位电压 47 V
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 18 V
额定电压AC Max 14 V
安装方式 Surface Mount
封装 SMD-2
长度 8 mm
宽度 5 mm
高度 2.03 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V22CH8T Littelfuse 力特 | 当前型号 | 当前型号 |
V22CH8 力特 | 类似代替 | V22CH8T和V22CH8的区别 |
V22CH8S 力特 | 功能相似 | V22CH8T和V22CH8S的区别 |
