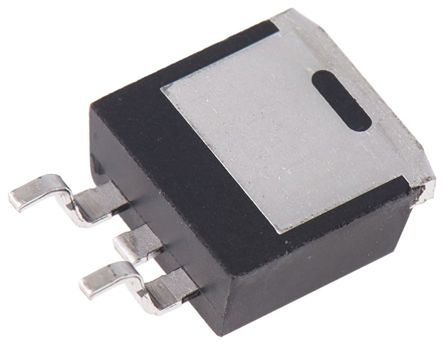

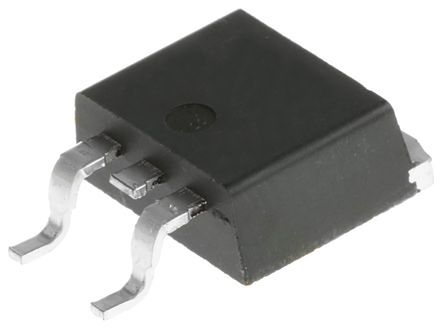

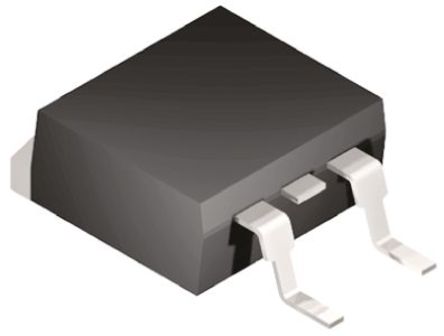

VISHAY VS-47CTQ020SPBF 肖特基整流器, 单, 20 V, 20 A, TO-263, 2 引脚, 450 mV
The is a high-performance centre-tap Schottky Rectifier optimized for very low forward voltage drop with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. It features high-purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance. Typical applications are in switching power supplies, converters, free-wheeling diodes and reverse battery protection.
- .
- High frequency operation
- .
- Guard-ring for enhanced ruggedness and long term reliability
- .
- AEC-Q101 qualified
针脚数 2
正向电压 450mV @20A
正向电流 20 A
最大正向浪涌电流（Ifsm） 1 kA
正向电压Max 450 mV
正向电流Max 40 A
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 TO-263-3
长度 10.67 mm
宽度 9.65 mm
高度 4.83 mm
封装 TO-263-3
产品生命周期 Discontinued at Digi-Key
包装方式 Each
制造应用 Power Management, Automotive, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-47CTQ020SPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
47CTQ020S 威世 | 类似代替 | VS-47CTQ020SPBF和47CTQ020S的区别 |
