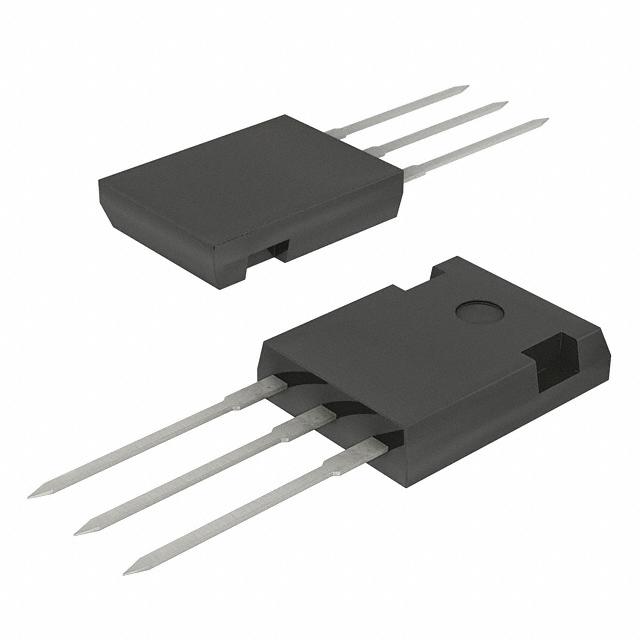

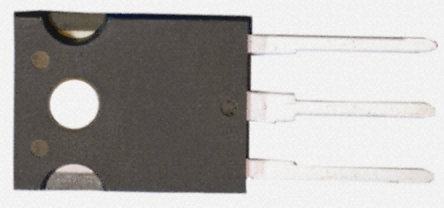

VS-30CPQ080-N3

30A 至 40A，Vishay Semiconductor肖特基整流器是半导体二极管，具有极低的正向电压降和非常快的切换作用。 肖特基二极管的反向恢复时间非常快。 肖特基二极管适用于需要快速切换和低功耗的应用。### 肖特基整流器，Vishay Semiconductor

DESCRIPTION

The VS-30CPQ... center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

FEATURES

• 175 °C TJ operation

• Low forward voltage drop

• High frequency operation

• High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

• Guard ring for enhanced ruggedness and long term reliability

• Compliant to RoHS Directive 2002/95/EC

• Designed and qualified according to JEDEC-JESD47

• Halogen-free according to IEC 61249-2-21 definition -N3 only
