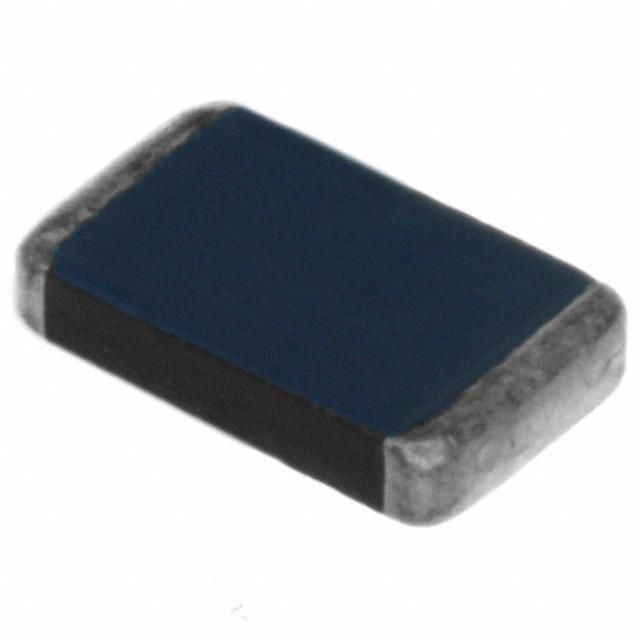

V180CH8T

压敏电阻 115V 250A 120pF 7 Inch Reel

变阻器 电路 表面贴装，MLCV 2-SMD，无引线

立创商城:
V180CH8T

得捷:
VARISTOR 180V 250A 2SMD NO LEAD

贸泽:
压敏电阻 115V 250A 120pF 7 Inch Reel

艾睿:
When different voltages are applied to this V180CH8T MOV from Littelfuse will change resistance. Its maximum surge current is 250 A. This device&s;s clamping current is 10 A and clamping voltage is 295 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. Its capacitance value is 200pF. This product is 8.51 mm long, 2.03 mm tall and 5.26 mm deep. This varistor has a voltage of 180 V. This device utilizes metal oxide technology. The maximum AC voltage rating is 115 VAC and the maximum DC voltage rating is 153 VDC.

Chip1Stop:
Var MOV 115VAC/153VDC 250A 180V SMD T/R

Verical:
Var MOV 115VAC/153VDC 250A 180V SMD T/R

Newark:
# LITTELFUSE  V180CH8T  TVS Varistor, 115 V, 153 V, CH Series, 295 V, 3220 [8552 Metric], Metal Oxide Varistor MOV

Win Source:
VARISTOR 180V 250A 2SMD NO LEAD / 180 V 250 A Varistor 1 Circuit Surface Mount, MLCV 2-SMD, No Lead
