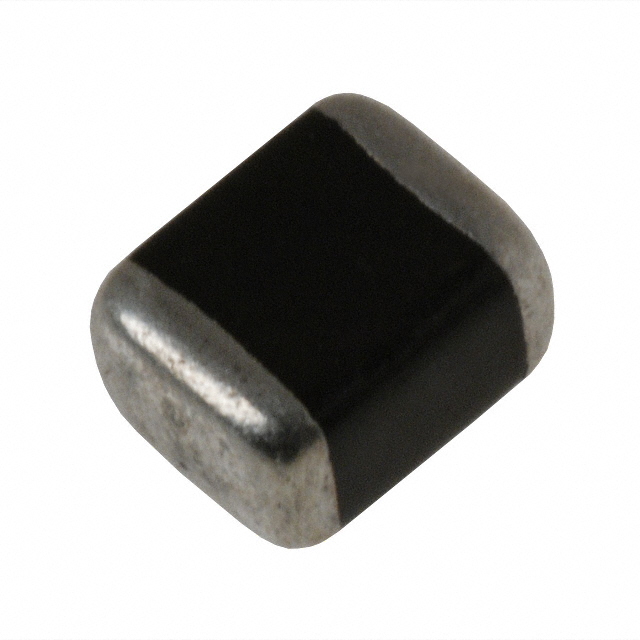

V26MLA1210NH

ML系列 26 VDC 20V RMS 60V 钳位 300A 1040pF 表面贴装 压敏电阻

34 V 300 A 变阻器 1 电路 表面贴装，MLCV 1210（3225 公制）

立创商城:
V26MLA1210NH

得捷:
VARISTOR 34V 300A 1210

艾睿:
Look no further, this V26MLA1210NH MOV from Littelfuse is a variable resistor. Its maximum surge current is 300 A. This device&s;s clamping current is 2.5 A and clamping voltage is 60 V. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 26 VDC. This varistor has a voltage of 38.5 V. Its capacitance value is 0.00148uF. This product is 3.2 mm long, 2.87 mm tall and 2.54 mm deep. This device utilizes multilayer technology.

Chip1Stop:
Var MLV 20VAC/26VDC 300A 38.5V 1210 SMD Automotive T/R

Verical:
Var MLV 20VAC/26VDC 300A 38.5V 1210 SMD T/R
