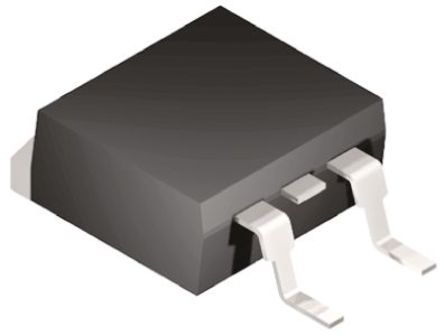

VS-HFA08TB120SPBF

VISHAY  VS-HFA08TB120SPBF  标准功率二极管, 单, 1.2 kV, 8 A, 3 V, 160 ns, 130 A

The is an Ultrafast Soft Recovery Diode employs the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 1200V and 8A continuous current, It is especially well suited for use as the companion diode for IGBTs and MOSFETs. In addition to Ultrafast recovery time, the HEXFRED® product line features extremely low values of peak recovery current IRRM and does not exhibit any tendency to snap-off during the tb portion of recovery. The HEXFRED features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor. These HEXFRED advantages can help to significantly reduce snubbing, component count and heat-sink sizes. It is ideally suited for applications in power supplies and power conversion systems.

.

Very low IRRM and Qrr

.

Reduced RFI and EMI

.

Reduced power loss in diode and switching transistor

.

Higher frequency operation

.

Reduced snubbing

.

Reduced parts count
