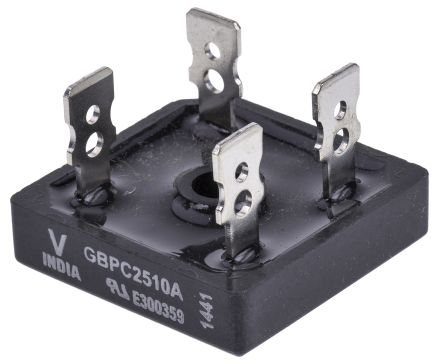

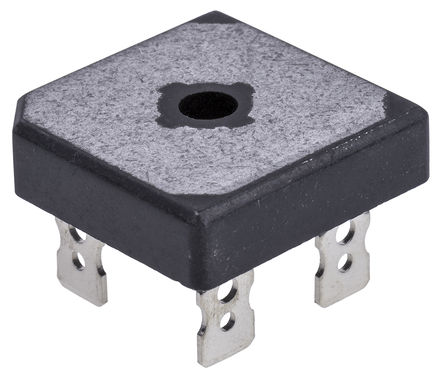

VS-GBPC2510A

VISHAY  VS-GBPC2510A  二极管 桥式整流, 单相, 1 kV, 25 A, 模块, 1.1 V, 4 引脚

The is a 4-pin single-phase compact Power Bridge Rectifier Diode offers efficient and reliable operation. The device is intended for use in general purpose applications. It has nickel-plated standard fast-on terminals solderable using lead Pb-free solder at temperature 260 to 275°C with Sn/Ag/Cu SAC305 alloy solder.

.

High thermal conductivity package, electrically insulated case

.

Positive polarity symbol moulded on the plastic case

.

Centre hole fixing

.

Glass passivated diode chips

.

Excellent power/volume ratio

.

-55 to 150°C Operating junction temperature range
