3025 1uH ±30%

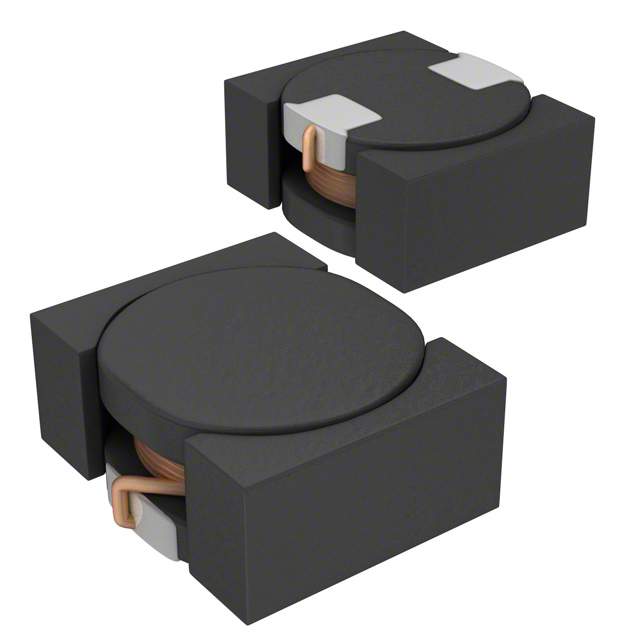

1µH Shielded Wirewound Inductor 2.13A 40mOhm Max Nonstandard
得捷: FIXED IND 1UH 2.13A 40 MOHM SMD
艾睿: Inductor Power Shielded Wirewound 1uH 30% 1MHz Ferrite 2.13A 40mOhm DCR Automotive T/R
电感 1 µH
产品系列 VLF-M-CA
电感公差 ±30 %
测试频率 1 MHz
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 40 mΩ
安装方式 Surface Mount
封装 비표준
高度 1 mm
产品生命周期 Obsolete
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
数据手册
