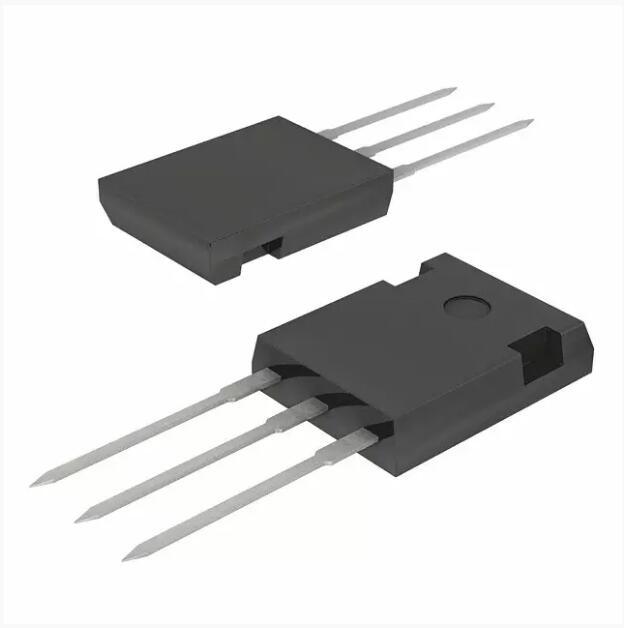

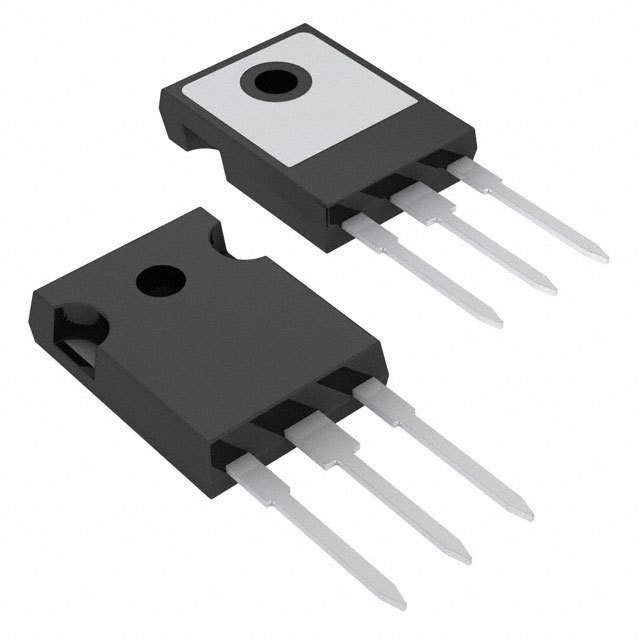

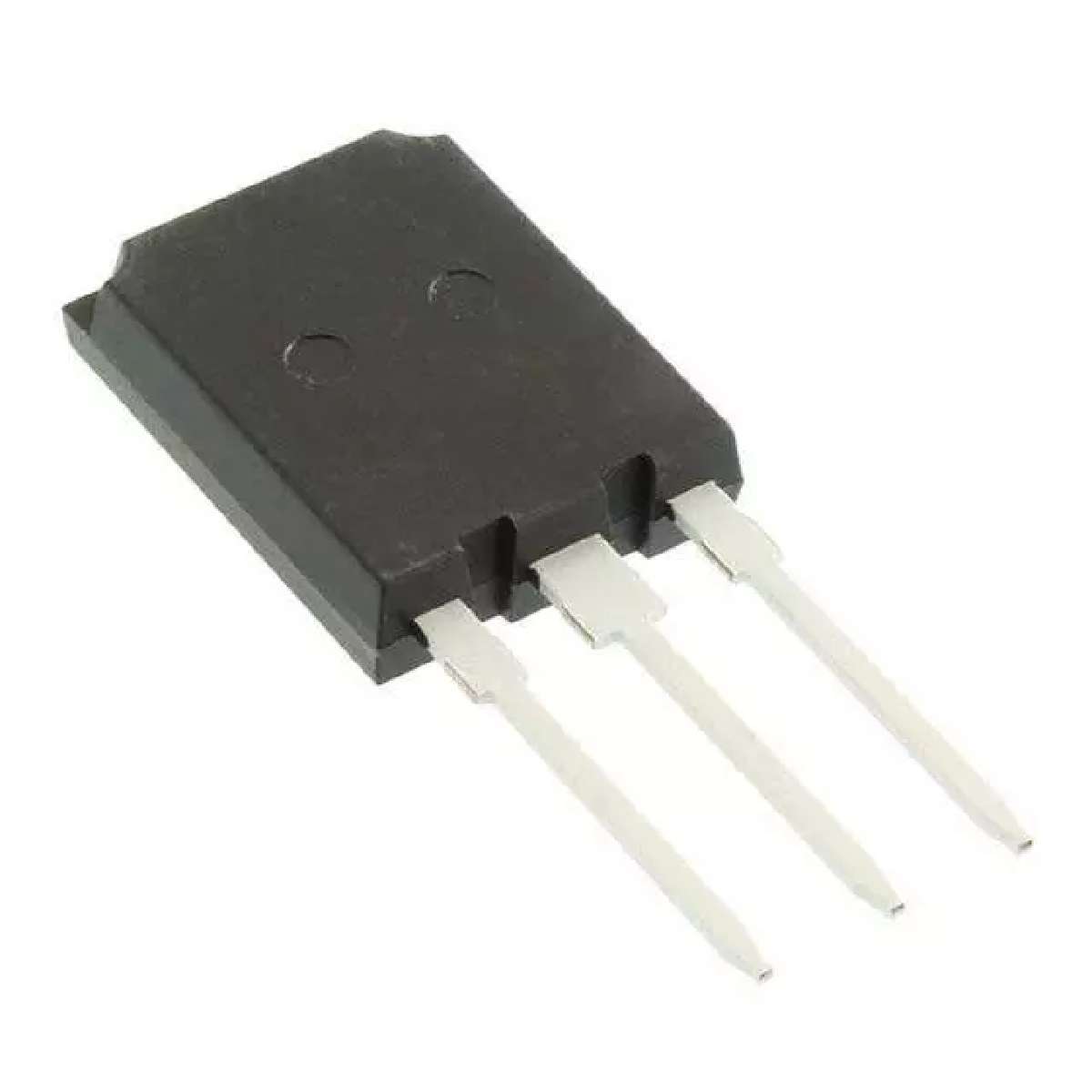

VISHAY VS-40CPQ060PBF 肖特基整流器, 双共阴极, 60 V, 20 A, TO-247AC, 3 引脚, 490 mV
The is a high-performance centre-tap Schottky Rectifier optimized for very low forward voltage drop with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. It features high-purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance. Typical applications are in switching power supplies, converters, free-wheeling diodes and reverse battery protection.
- .
- High frequency operation
- .
- Guard-ring for enhanced ruggedness and long term reliability
- .
- Halogen-free
针脚数 3
正向电压 530 mV
正向电流 40 A
最大正向浪涌电流（Ifsm） 3.5 kA
正向电压Max 490 mV
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 15.87 mm
宽度 5.31 mm
高度 20.7 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Each
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-40CPQ060PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
40CPQ060 威世 | 功能相似 | VS-40CPQ060PBF和40CPQ060的区别 |
