VISHAY VS-60APU06PBF 快速/超快功率二极管, 单, 600 V, 60 A, 1.68 V, 45 ns, 600 A
The is an Ultra-fast Soft Recovery Diode optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. It is ideally suited for HF welding, power converters and other applications where switching losses are not significant portion of the total losses.
- .
- Ultra-fast recovery time
- .
- Low forward voltage drop
- .
- Designed and qualified according to JEDEC®-JESD47
- .
- Reduced snubbing
- .
- Reduced parts count
正向电压 1.68V @60A
反向恢复时间 45 ns
正向电流 60 A
最大正向浪涌电流（Ifsm） 600 A
正向电压Max 1.68 V
正向电流Max 60 A
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 3

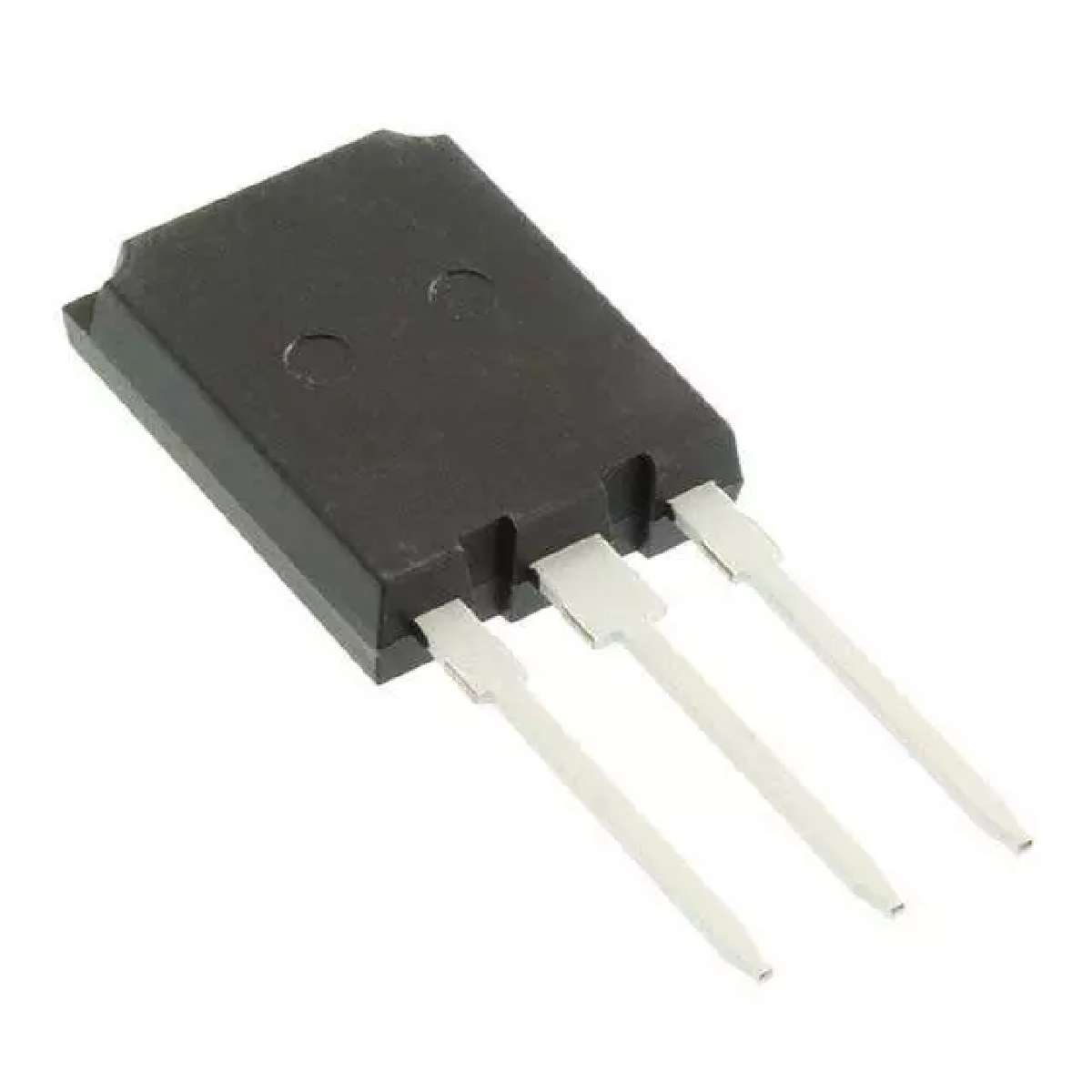

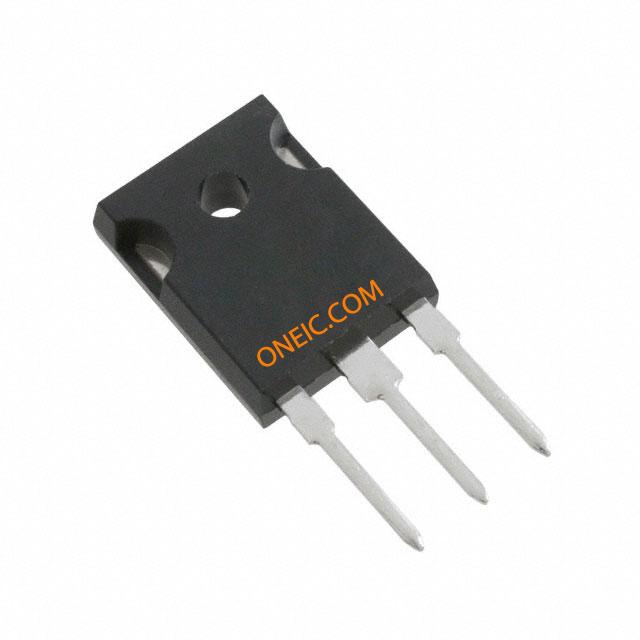

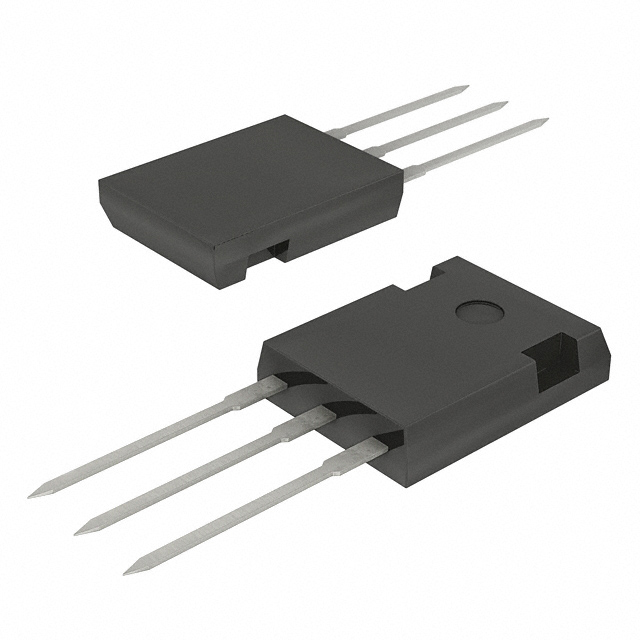

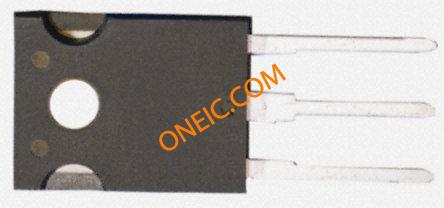

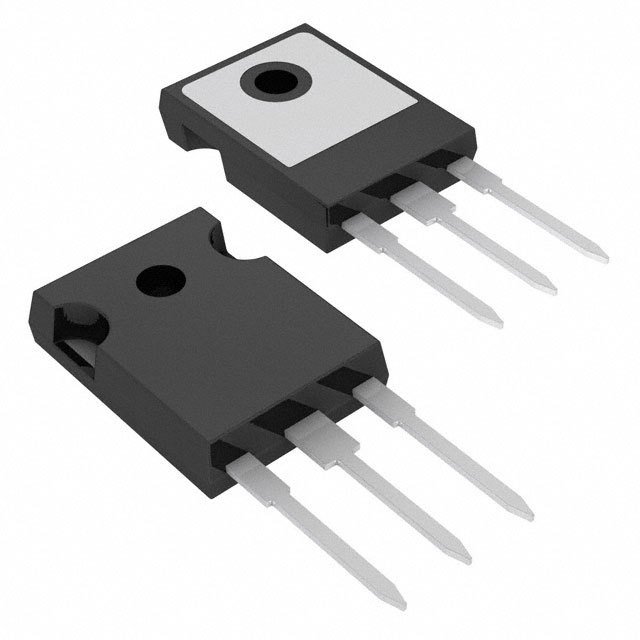

封装 TO-247-3
长度 15.87 mm
宽度 5.31 mm
高度 20.7 mm
封装 TO-247-3
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-60APU06PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
60APU06 威世 | 类似代替 | VS-60APU06PBF和60APU06的区别 |
VS-60APU06-N3 威世 | 类似代替 | VS-60APU06PBF和VS-60APU06-N3的区别 |
60APU06PBF 威世 | 功能相似 | VS-60APU06PBF和60APU06PBF的区别 |
