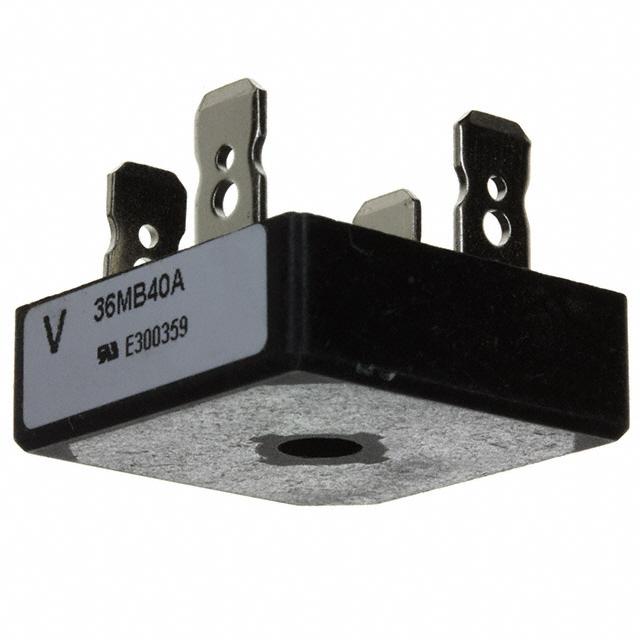

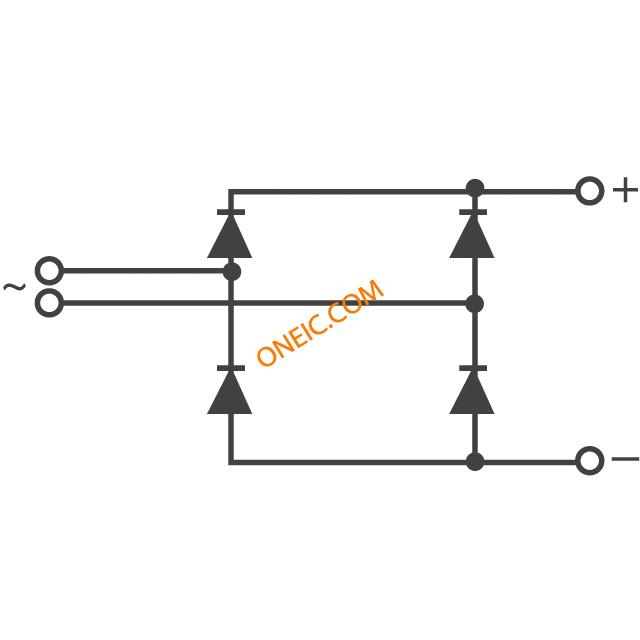

VISHAY VS-36MB40A. 二极管 桥式整流, 单相, 400 V, 35 A, 模块, 1.14 V, 4 引脚
A range of extremely compact, encapsulated single-phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general-purpose and instrumentation applications.
**Features:**
* Universal, 3-Way Terminals: Push-on, Wrap Around or Solder
* High Thermal Conductivity Package, Electrically Insulated Case
* Center Hole Fixing
* Excellent Power/Volume Ratio
* UL E 62320 Approved
* Nickel Plated Terminals Solderable as Per MIL-STD-202 Method 208; Solder: Sn/Pb 60/40; Solder Temperature: 235-260°C Max. Time: 8-10 s
针脚数 4
正向电压 1.3 V
热阻 1.2K/W RθJC
正向电流 35 A
最大正向浪涌电流(Ifsm) 500 A
正向电压Max 1.14 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 4
封装 D-34
长度 28.5 mm
宽度 28.5 mm
高度 9.8 mm
封装 D-34
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Each
制造应用 Power Management, 传感与仪器, 电源管理, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-36MB40A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
GBPC3504 飞兆/仙童 | 功能相似 | VS-36MB40A和GBPC3504的区别 |
