压敏电阻产品 Varistor Products

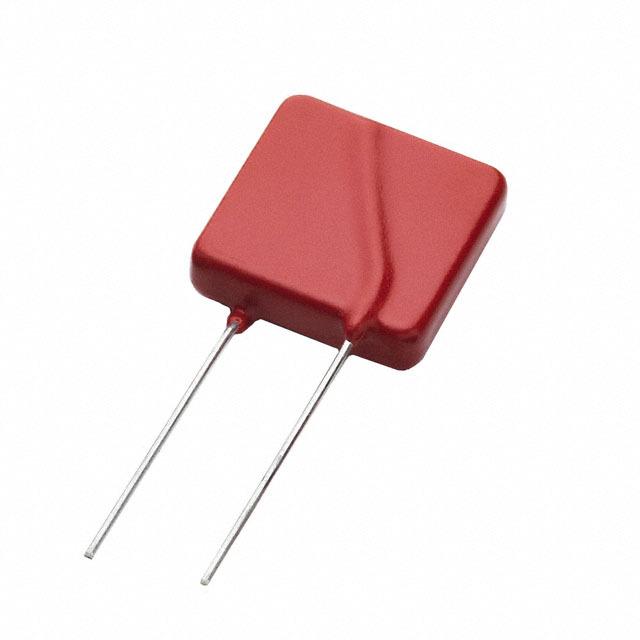

Similar to a diode this MOV manufactured from is a nonlinear component. Its maximum surge current is 22000 A. This device"s clamping current is 100 A and clamping voltage is 825 V. This voltage dependent resistor has an operating temperature of -55 to 85 °C. Its capacitance value is 0.00135uF. This device utilizes metal oxide technology. The maximum AC voltage rating is 320 VAC and the maximum DC voltage rating is 420 VDC. This varistor has a voltage of 561 V. This product is 28 mm long, 32.5 mm tall and 7.1 mm deep.
额定电压DC 420 V
额定电压AC 320 V
绝缘电阻 1000 MΩ
电容 0.00135 µF
容差 5 %
电路数 1
钳位电压 825 V
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压DC Max 420 V
额定电压AC Max 320 V
安装方式 Through Hole
封装 Radial
长度 32.5 mm
宽度 28 mm
高度 32.5 mm
封装 Radial
工作温度 -55℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
