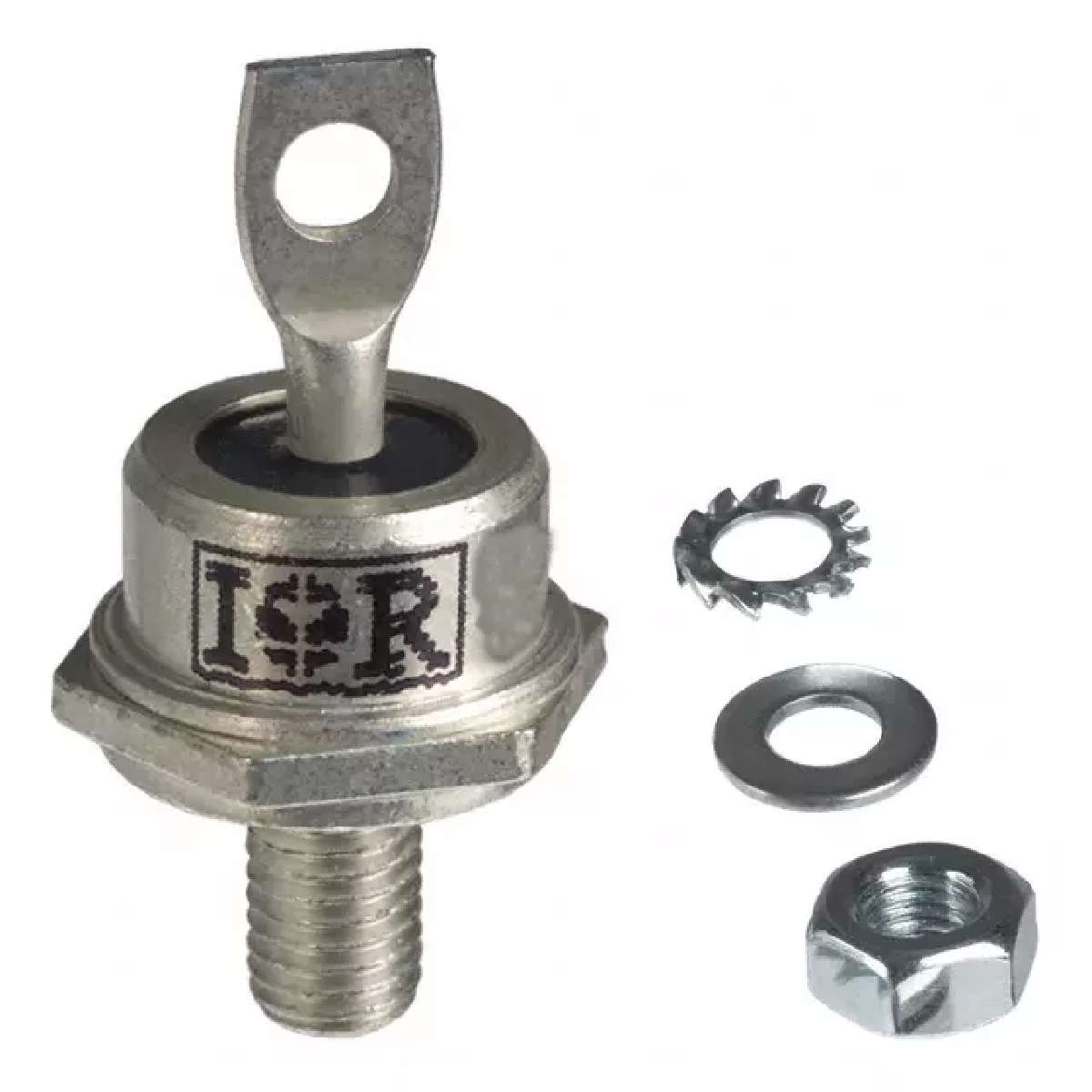

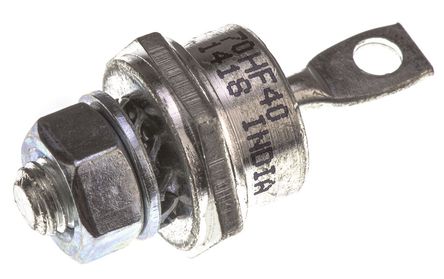

VISHAY VS-70HF40. 整流二极管, 标准恢复型
The is a 2-pin 400V Standard Recovery Diode designed for a wide range of applications. It is designed and qualified for industrial level. It offers single diode circuit configuration and stud cathode and anode version.
得捷:
DIODE GEN PURP 400V 70A DO203AB
贸泽:
Rectifiers 400 Volt 70 Amp
艾睿:
Diode Switching 400V 70A 2-Pin DO-5
Newark:
# VISHAY VS-70HF40 Diode Module, 400 V, 70 A, 1.35 V
Online Components:
Diode Switching 400V 70A 2-Pin DO-5
正向电压 1.35 V
热阻 0.45K/W RθJC
正向电流 70 A
最大正向浪涌电流(Ifsm) 1.3 kA
正向电压Max 1.35 V
正向电流Max 70 A
工作温度Max 180 ℃
工作温度Min -65 ℃
工作结温Max 180 ℃
安装方式 Chassis
引脚数 2
封装 DO-203AB
长度 20.02 mm
宽度 17.35 mm
高度 22.9 mm
封装 DO-203AB
工作温度 -65℃ ~ 180℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Automation & Process Control, Signal Processing, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-70HF40 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-70HF80 威世 | 类似代替 | VS-70HF40和VS-70HF80的区别 |
70HF40 Solid State | 功能相似 | VS-70HF40和70HF40的区别 |
