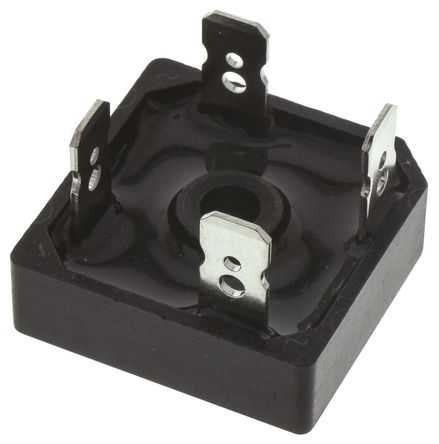

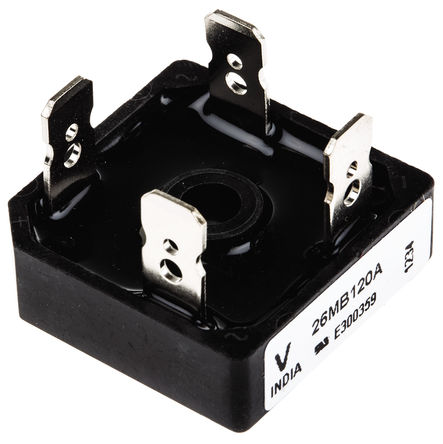

VISHAY VS-26MB120A 二极管 桥式整流, 单相, 1.2 kV, 25 A, 模块, 1.11 V, 4 引脚
A range of extremely compact, encapsulated single-phase bridge rectifiers offering efficient and reliable operation. They are intended for use in
general-purpose and instrumentation applications.
**Features:**
* Universal, 3-Way Terminals: Push-on, Wrap Around or Solder
* High Thermal Conductivity Package, Electrically Insulated Case
* Center Hole Fixing
* Excellent Power/Volume Ratio
* UL E300359 Approved
* Nickel Plated Terminals Solderable Using Lead-Free solder; Solder Alloy Sn/Ag/Cu SAC305; Solder Temperature 260-275°C°
* RoHS Compliant
针脚数 4
正向电压 1.25 V
热阻 1.7K/W RθJC
正向电流 25 A
最大正向浪涌电流（Ifsm） 420 A
正向电压Max 1.11 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 4
封装 D-34
长度 28.5 mm
宽度 28.5 mm
高度 9.8 mm
封装 D-34
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Each
制造应用 Sensing & Instrumentation, Industrial, Consumer Electronics, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
