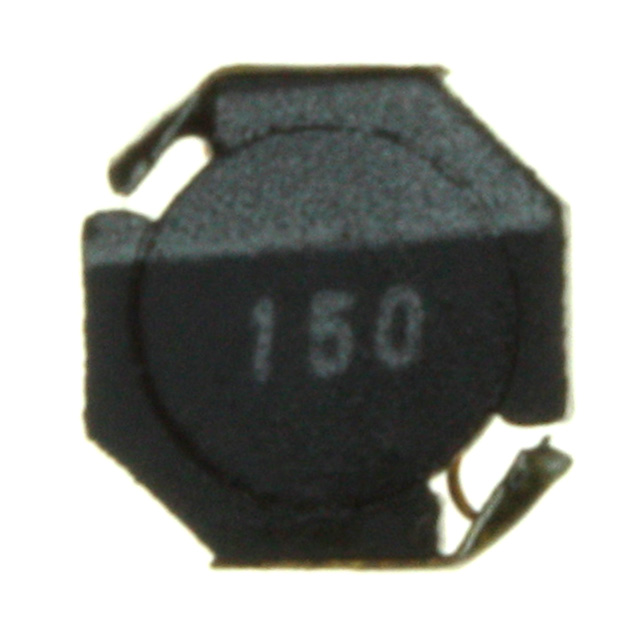

VLF5014AT-150MR76

VLF5014A 系列 15 uH 20% 容差 2.9A 0.59 ohm DCR 最大值 SMD 线绕 电感

Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 760mA 320mOhm DCR T/R

得捷:
FIXED IND 15UH 760MA 320MOHM SMD

艾睿:
An ideal space-saving electronic component is this power VLF5014AT-150MR76 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 760mA typ with a maximum resistance of 320m Ohm. This device is made with wirewound technology. It has a tolerance of 20%. It has an inductance of 15u H. This product is 5 mm long, 1.4 mm tall and 4.8 mm deep.

富昌:
VLF5014A 系列 15 uH 20% 容差 2.9A 0.59 ohm DCR 最大值 SMD 线绕 电感

Verical:
Ind Power Shielded Wirewound 15uH 20% 100KHz 970mA T/R

MASTER:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 760mA 320mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 760mA 320mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 760mA 320mOhm DCR T/R

Win Source:
15μH Shielded Wirewound Inductor 760mA 320 mOhm Max Nonstandard
