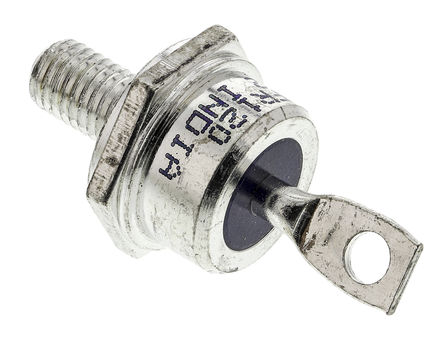

40A采用工业标准封装类型的多用途、高效标准恢复功率二极管。### 二极管和整流器,Vishay Semiconductor
The is a reverse polarity standard Recovery Diode with anode stud. This standard diode is suitable for machine tool controls and battery charges.
正向电压 1.35 V
热阻 0.45K/W RθJC
正向电流 70 A
最大正向浪涌电流(Ifsm) 1.3 kA
正向电压Max 1.35 V
正向电流Max 70 A
工作温度Max 180 ℃
工作温度Min -65 ℃
工作结温Max 180 ℃
安装方式 Chassis
引脚数 2
封装 DO-203AB
长度 20.08 mm
宽度 17.4 mm
高度 22.9 mm
封装 DO-203AB
工作温度 -65℃ ~ 180℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Maintenance & Repair, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-70HFR120 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-70HFR140 威世 | 类似代替 | VS-70HFR120和VS-70HFR140的区别 |
