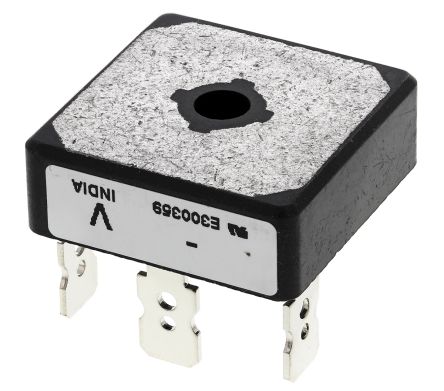

VISHAY VS-36MT120 桥式整流器
A range of extremely compact, encapsulated three-phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general-purpose and instrumentation applications.
**Features:**
* Universal, 3-Way Terminals: Push-on, Wrap Around or Solder
* High Thermal Conductivity Package, Electrically Insulated Case
* Center Hole Fixing
* Excellent Power/Volume Ratio
* UL E300359 Approved
* Gold Plated Terminals Solderable Using Lead Pb-Free Solder; Solder Alloy Sn/Ag/Cu SAC305; Solder Temperature 260 to 275°C
* RoHS Compliant
* Designed and Qualified for Industrial and Consumer Level
额定电流 35.0 A
针脚数 5
正向电压 1.19 V
耗散功率 0.35 W
隔离电压 2.70 kV
热阻 1.35K/W RθJC
正向电流 35 A
最大正向浪涌电流（Ifsm） 500 A
正向电压Max 1.19 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Through Hole
引脚数 5
封装 D-63
长度 28.5 mm
宽度 28.5 mm
高度 10 mm
封装 D-63
重量 20.0 g
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Each
制造应用 Power Management, 传感与仪器, 电源管理, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
