Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 11A 277VAC 250VDC 248.57VA 0.74N Screw Mount
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
艾睿:

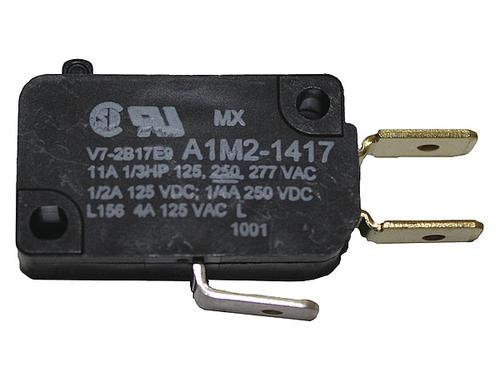

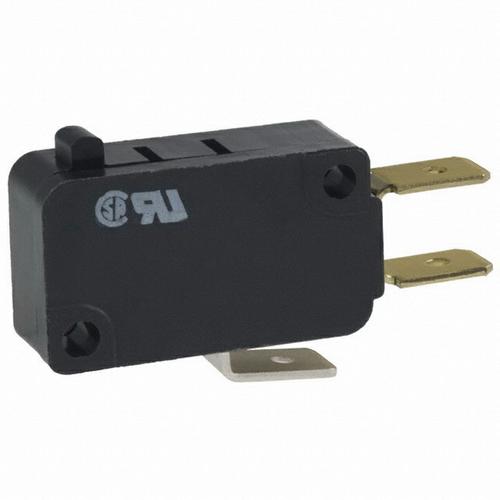

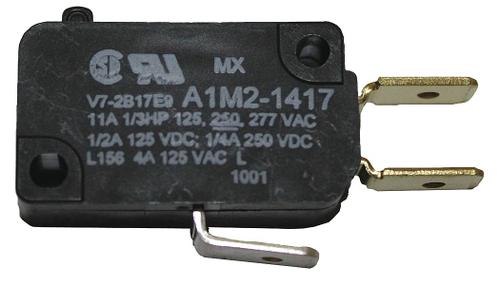

The V7-2B17E9 snap-action switch from Honeywell is ideal when it comes to opening or closing your circuit. This device has a maximum current rating of 11 A @ 277VAC@CSA/UL. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The V7-2B17E9 snap action switch has a quick connect termination style. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250@CSA/UL VDC. This product is 39.4 mm long and 10.16 mm.
Allied Electronics:
Miniature Switch, Basic, SPDT, 11 A @ 277 Vac, Pin Plunger
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 11A 277VAC 250VDC 0.74N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 11A 277VAC 250VDC 248.57VA 0.74N Screw Mount
Newark:
# HONEYWELL V7-2B17E9 Microswitch, V7 Series, SPDT, Quick Connect, 11 A, 277 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 11 A 125, 250, or 277 Vac, Pin Plunger, 75 g [2.65 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 185 °F] Temperature Range, 6,35
Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Open SPNO, 6 A 125, 250, or 277 Vac, 32,8 ...
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 11 A 125, 250, or 277 Vac, Pin ...
