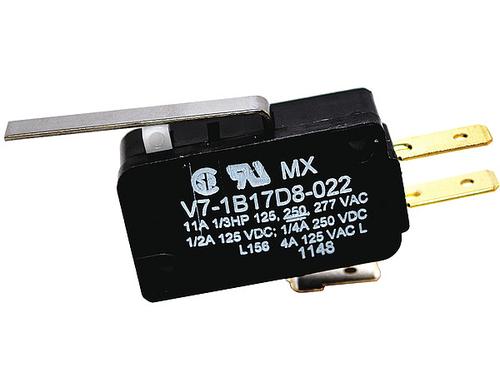

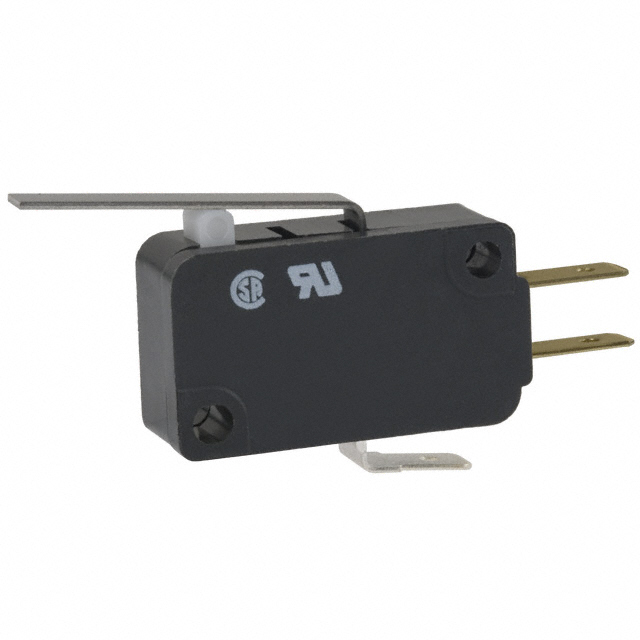

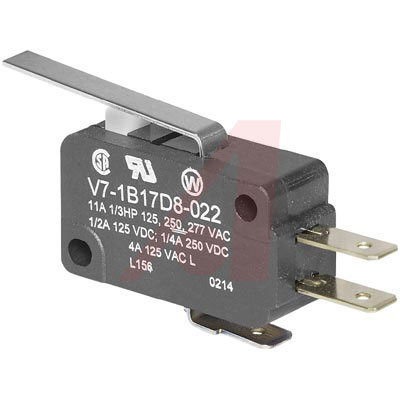

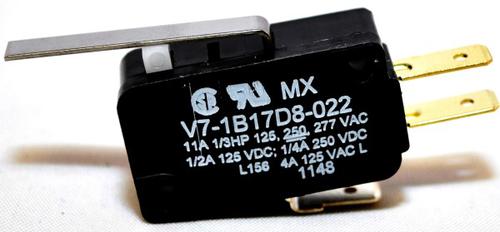

HONEYWELL V7-1B17D8-022 微动开关
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
e络盟:
微动开关
艾睿:
If you&s;re looking for rapid switching to close your circuit use this V7-1B17D8-022 snap-action switch from Honeywell. This device has a maximum current rating of 11 A @ 277VAC@CSA/UL. It has a SPDT configuration. This snap action switch has an operating temperature range of -40 °C to 85 °C. The V7-1B17D8-022 snap action switch has a quick connect termination style. This product is 10.16 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250@CSA/UL VDC.
Allied Electronics:
Basic Switch, Miniature, 11 Amps, 277 VAC, Straight Lever, SPDT, Quick Connect
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Straight Lever Quick Connect 11A 277VAC 0.8N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Straight Lever Quick Connect 11A 277VAC 250VDC 248.57VA 0.8N Screw Mount
Newark:
# HONEYWELL V7-1B17D8-022 Microswitch, V7 Series, SPDT, Quick Connect, 11 A, 277 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Basic Switches: V-Basic Standard V15 Series, Temperature Grade 125° C [257° F], 22 A 125/250 Vac, Slot Hole Solder Terminals, Single Pole Normally Closed SPNC, Operating Force 200 gf, Standard Straight Lever Positioned Far From Pin Plunger, Metric Mounting Holes
Online Components:
MICRO SWITCH™ Basic Switches: V-Basic Standard V15 Series, Temperature Grade 125° C [257° F], 22 A 125/250 Vac, Slot Hole ...
GOPHER:
Miniature Basic Switch SPDT 11 AMP .187IN QUICK CON SIDE MOUNT 1.4IN STRAIGHT LEVER ACTUATOR, 2.9 OZ O.F. MICRO SWITCH
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 4A 125 Vac, 82g Maximum Operating Force, Straight ...
额定电压DC 125 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 11 A
触点类型 SPDT
针脚数 2
触点额定电流 11.0 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 277 VAC
安装方式 Chassis, Quick Connect
长度 28.96 mm
宽度 10.2 mm
高度 16.01 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 85℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V7-1B17D8-022 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
D42L-R1XL Cherry | 功能相似 | V7-1B17D8-022和D42L-R1XL的区别 |
