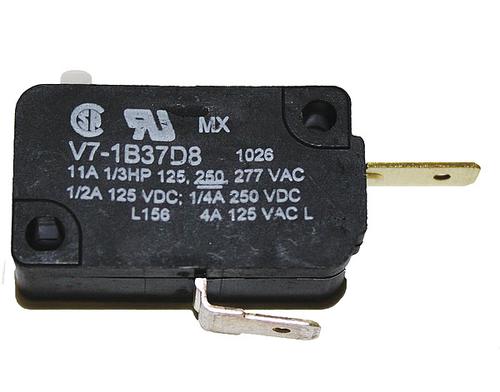

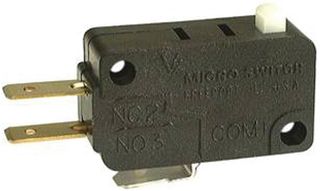

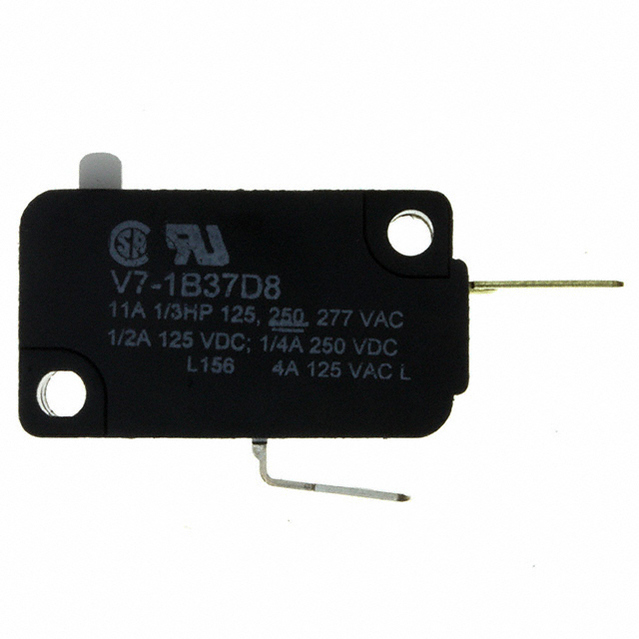

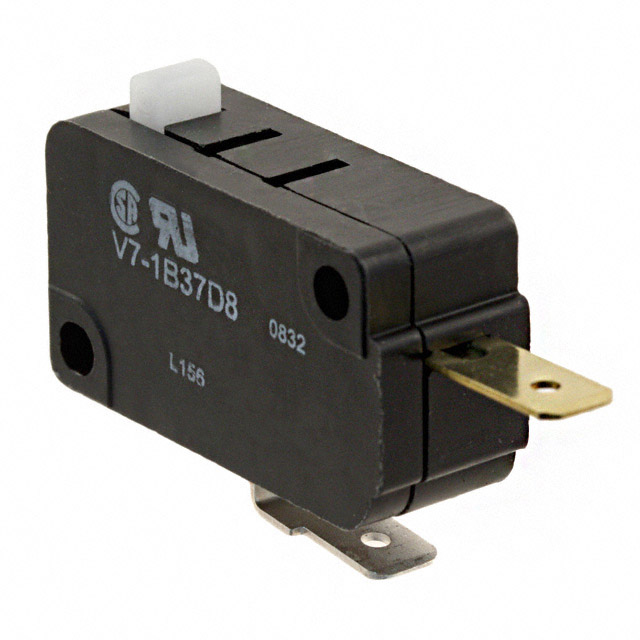

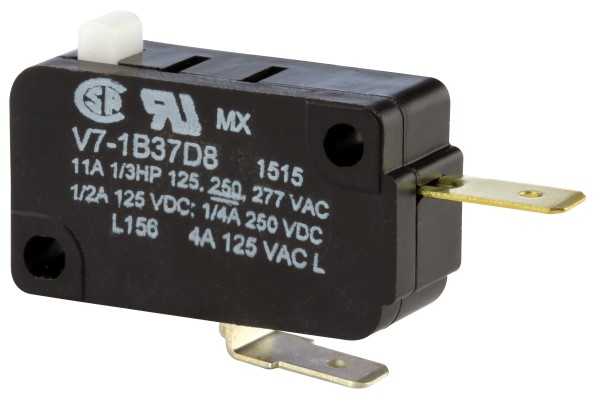

微动开关, PIN 柱塞型, SPST-常开, 11A 277V
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
艾睿:
This V7-1B37D8 snap-action switch from Honeywell can be actuated with very little physical force. It has a SPST configuration. This device has a maximum current rating of 11 A @ 277VAC@CSA/UL. This snap action switch has an operating temperature range of -40 °C to 85 °C. The V7-1B37D8 snap action switch has a quick connect termination style. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250@CSA/UL VDC. This product is 38.61 mm long, 23.72 mm tall and 10.16 mm deep.
Allied Electronics:
Miniature Switch, Basic, SP, NC, 11 A @277 Vac, Simulated Roller Lever
Chip1Stop:
Switch Snap Action N.C. SPST Plunger Quick Connect 11A 277VAC 250VDC 1.47N Screw Mount
Verical:
Switch Snap Action N.C. SPST Pin Plunger Quick Connect 11A 277VAC 250VDC 248.57VA 1.47N Screw Mount
Newark:
# HONEYWELL V7-1B37D8 Microswitch, V7 Series, SPST-NC, Quick Connect, 11 A, 277 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Closed SPNC, 11 A 125, 250, or 277 Vac, Pin Plunger, 150 g [5.3 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 185 °F] Temperature Range, 4
Online Components:
MICRO SWITCH™ Watertight Miniature Basic Switches: V15W Series, Single Pole Normally Open SPNO, 10 A 125/250 Vac, ENEC 10 A ...
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Closed SPNC, 11 A 125, 250, or 277 Vac, Pin ...
接触器类型 Pin Plunger
额定电流 11 A
触点类型 SP-NC
触点额定电流 11.0 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 277 VAC
安装方式 Quick Connect
长度 28.96 mm
宽度 10.16 mm
高度 23.72 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 85℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V7-1B37D8 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
V-15-2C25 欧姆龙 | 功能相似 | V7-1B37D8和V-15-2C25的区别 |
VX-5-2C23 欧姆龙 | 功能相似 | V7-1B37D8和VX-5-2C23的区别 |
V-16G-2C25R 欧姆龙 | 功能相似 | V7-1B37D8和V-16G-2C25R的区别 |
