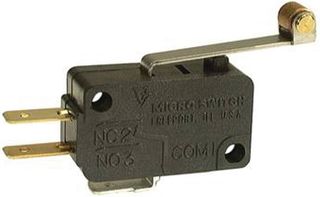

HONEYWELL V7-2B17D8-207 微动开关
The is a single-pole double-throw SPDT premium Miniature Basic Switch with a roller lever actuator and quick-connect/solder terminations. The MICRO SWITCH™ V7 series premium basic switch is used for simple or precision ON/OFF, end of limit, presence/absence and manual operator interface application needs. The V7 switch can reliably control logic level electrical loads from less than 0.1A to power duty switching up to 25A.
- .
- Actuation on time
- .
- Reliable performance in harsh conditions
- .
- Long life cycle rating
- .
- Design flexibility
额定电压DC 125 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 11 A
触点类型 SPDT
针脚数 2
触点额定电流 15.1 A
额定电流Max 11A @277VAC
额定功率Max 248.57 VA
工作温度Max 82 ℃
工作温度Min -40 ℃
额定电压 277 VAC
安装方式 Chassis, Quick Connect
封装 207
长度 48.01 mm
宽度 10.16 mm
高度 31.37 mm
封装 207
触点材质 Silver
重量 8.00 g
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, Test & Measurement, Industrial, Medical, Consumer Electronics, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V7-2B17D8-207 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
D3V-21G6-1C4A-K 欧姆龙 | 功能相似 | V7-2B17D8-207和D3V-21G6-1C4A-K的区别 |
D3V0161C23 欧姆龙 | 功能相似 | V7-2B17D8-207和D3V0161C23的区别 |
V15G61C6K 欧姆龙 | 功能相似 | V7-2B17D8-207和V15G61C6K的区别 |
