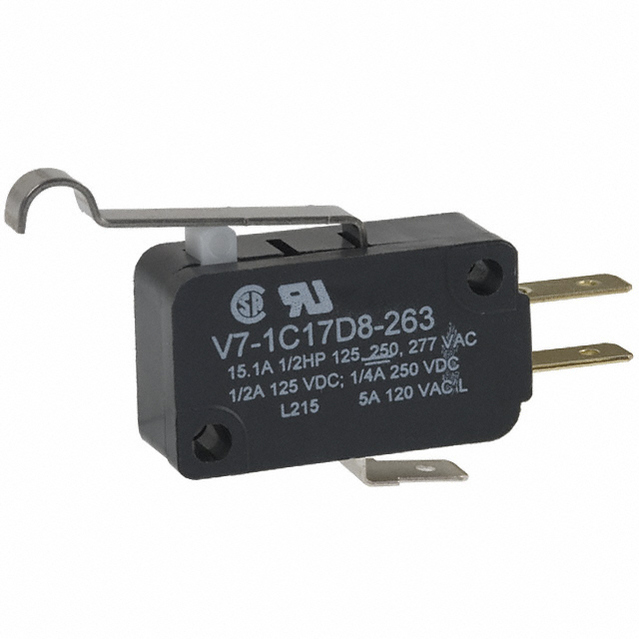

HONEYWELL V7-1C17D8-263 微动开关, V7系列, SPDT, 快速连接, 15 A, 277 VAC, 250 VDC
The is a single-pole double-throw SPDT premium Miniature Basic Switch with a simulated roller lever actuator and quick-connect terminations. The MICRO SWITCH™ V7 series premium basic switch is used for simple or precision ON/OFF, end of limit, presence/absence and manual operator interface application needs. The V7 switch can reliably control logic level electrical loads from less than 0.1A to power duty switching up to 25A.
- .
- Actuation on time
- .
- Reliable performance in harsh conditions
- .
- Long life cycle rating
- .
- Design flexibility
额定电压DC 125 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 15 A
触点类型 SPDT
针脚数 2
触点额定电流 15.0 A
额定电流Max 15.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 277 VAC
安装方式 Chassis, Quick Connect
长度 28.96 mm
高度 16.01 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 测试与测量, 医用, Industrial, Communications & Networking, Test & Measurement, 通信与网络, 消费电子产品, Consumer Electronics, Medical, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V7-1C17D8-263 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
D42L-R1XL Cherry | 功能相似 | V7-1C17D8-263和D42L-R1XL的区别 |
