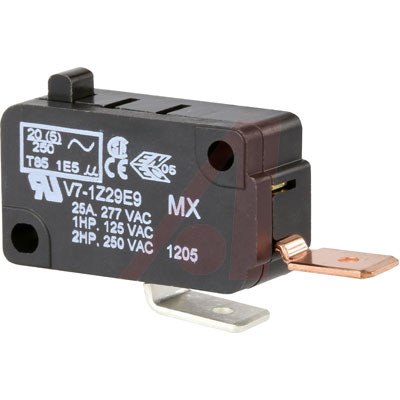

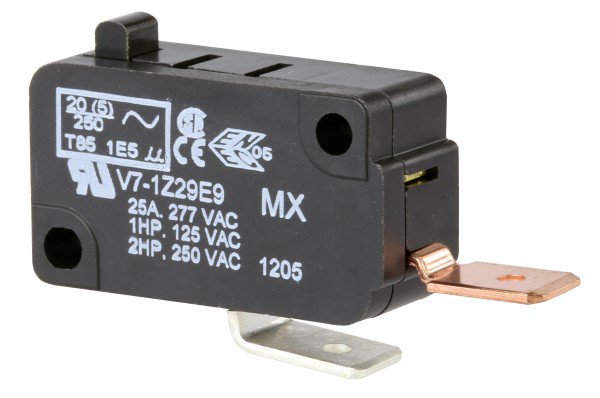

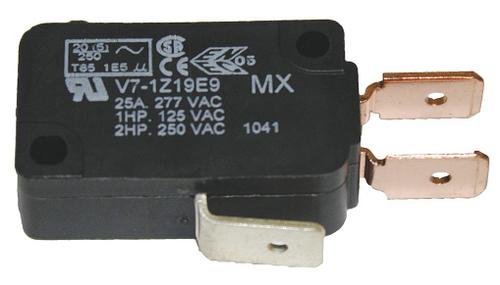

HONEYWELL V7-1Z19E9 微动开关
The is a single-pole double-throw SPDT premium Miniature Basic Switch with a plunger actuator and quick-connect spread/solder terminations. The MICRO SWITCH™ V7 series premium basic switch is used for simple or precision ON/OFF, end of limit, presence/absence and manual operator interface application needs. The V7 switch can reliably control logic level electrical loads from less than 0.1A to power duty switching up to 25A.
- .
- Actuation on time
- .
- Reliable performance in harsh conditions
- .
- Long life cycle rating
- .
- Design flexibility
接触器类型 Pin Plunger
额定电压AC 277 V
额定电流 25 A
触点类型 SPDT
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Chassis, Quick Connect
长度 39.55 mm
宽度 10.16 mm
高度 23.72 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, 工业, Industrial, Medical, 医用, Test & Measurement, 通信与网络, HVAC, Industrial, Consumer Electronics, Test & Measurement, , Consumer Electronics, 测试与测量, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V7-1Z19E9 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
V21-1C6 欧姆龙 | 类似代替 | V7-1Z19E9和V21-1C6的区别 |
V-10-1C25-K 欧姆龙 | 功能相似 | V7-1Z19E9和V-10-1C25-K的区别 |
V-16-1C25 欧姆龙 | 功能相似 | V7-1Z19E9和V-16-1C25的区别 |
