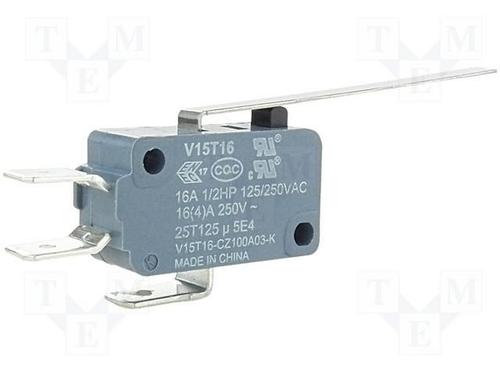

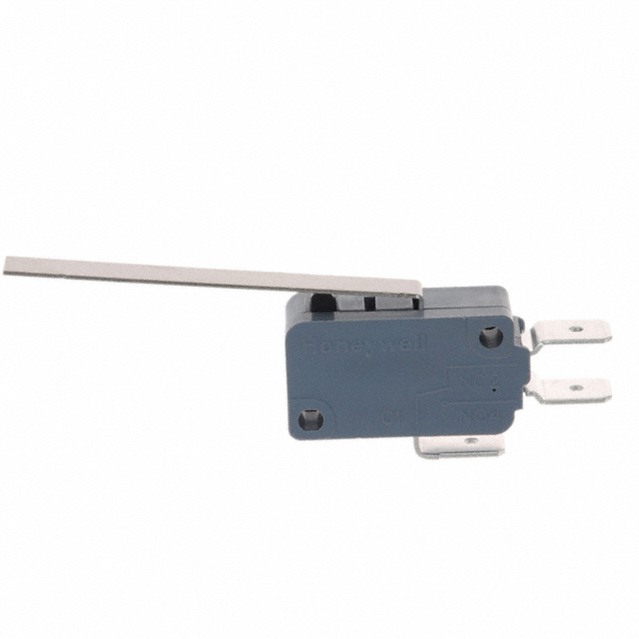

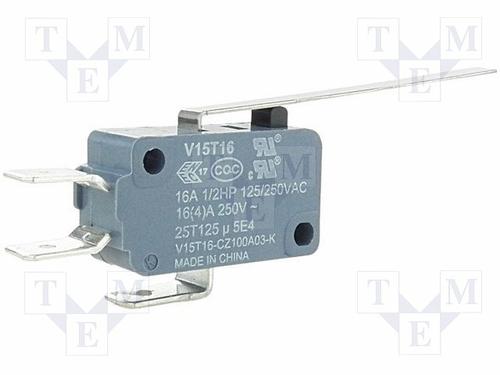

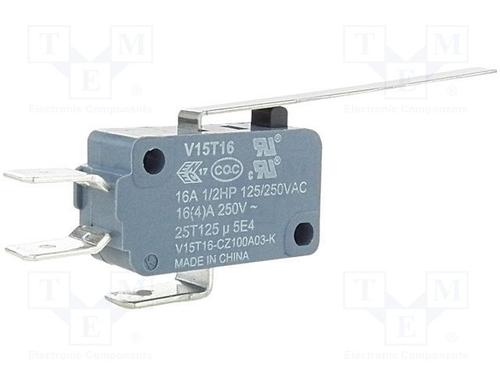

V15T16-CZ100A03-K

HONEYWELL  V15T16-CZ100A03-K  微动开关, 直杆, SPDT, 16A 250V

MICRO SWITCH™ Basic Switches: V-Basic Standard V15 Series, Temperature Grade 85° C [185° F], 5 A 125/250 Vac, 4,7 mm x 0,5 mm Quick Connect Terminals, Single Pole Double Throw SPDT, Operating Force 100 gf, Standard Straight Lever Positioned Far From Pin Plunger, USA Mounting Holes, Gold-Plated Contacts

Potential Applications:

Appliance

Gaming

Vending machines

Water heaters

Industrial controls

得捷:
SWITCH SNAP ACTION SPDT 16A 250V

贸泽:
基本/快动开关 Lever Straight 16A @250VAC SPDT

e络盟:
微动开关, 直杆, SPDT, 16A 250V

艾睿:
The V15T16-CZ100A03-K snap-action switch from Honeywell is ideal when it comes to opening or closing your circuit. It has a SPDT configuration. This device has a maximum current rating of 16 A @ 250VAC. This snap action switch has an operating temperature range of -25 °C to 125 °C. The V15T16-CZ100A03-K snap action switch has a quick connect termination style. The maximum AC voltage rating is 250 VAC. This product is 74.2 mm long, 28.2 mm tall and 10.3 mm deep.

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 16A 250VAC 372.85VA 0.29N Screw Mount

TME:
Microswitch SNAP ACTION; with lever; SPDT; 16A/250VAC; ON-ON

Verical:
Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 16A 250VAC 372.85VA 0.29N Screw Mount

Newark:
# HONEYWELL  V15T16-CZ100A03-K  Microswitch, V15 Series, SPDT, Quick Connect, 16 A, 250 VAC

MASTER:
MICRO SWITCH™ Basic Switches: V-Basic Standard V15 Series, Temperature Grade 125° C [257° F], 16 A 125/250 Vac, 6,3 mm x 0,8 mm Quick Connect Terminals, Single Pole Double Throw SPDT, Operating Force 100 gf, Long Straight Lever Positioned Far From Pin P

Online Components:
MICRO SWITCH™ Basic Switches: V-Basic Standard V15 Series, Temperature Grade 85° C [185° F], 5 A 125/250 Vac, 4,7 mm ...

Electro Sonic:
MICRO SWITCH™ Basic Switches: V-Basic Standard V15 Series, Temperature Grade 125° C [257° F], 16 A 125/250 Vac, 6,3 mm ...
