V7-7B17D8-201

HONEYWELL  V7-7B17D8-201  微动开关, V7系列, SPDT, 快速连接，焊接, 11 A, 250 VAC, 250 VDC

’s V7 miniature switches are designed for long term-reliability in a rugged switch

packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple

or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.

欧时:
Switch SPDT Roller Lever Q.C.

e络盟:
微动开关, 小型, 辊式杆, SPDT, 快速连接，焊接, 11 A, 250 VDC

艾睿:

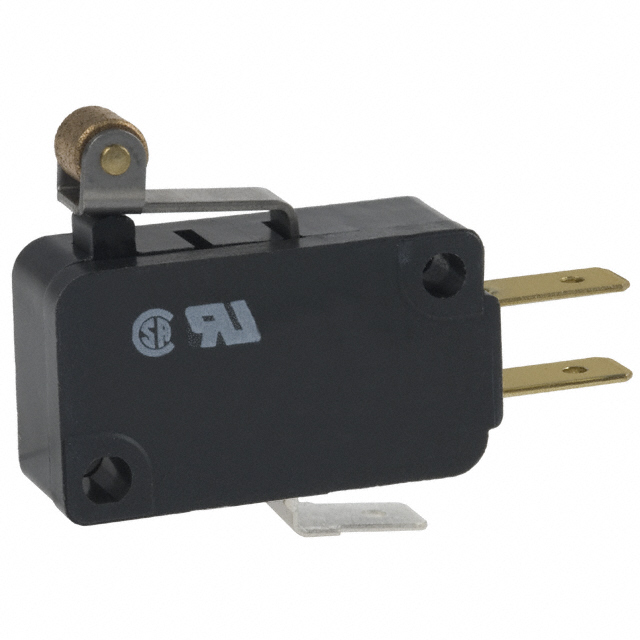

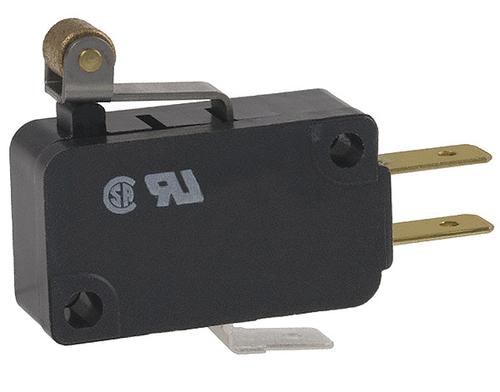

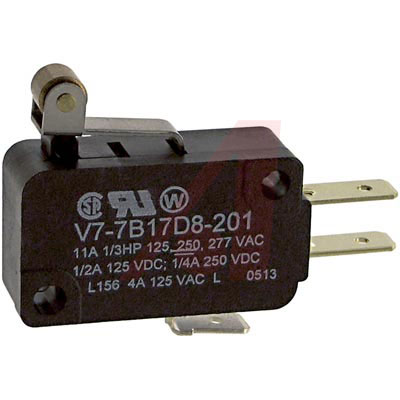

This V7-7B17D8-201 snap-action switch from Honeywell can be actuated with very little physical force. It has a SPDT configuration. This device has a maximum current rating of 11 A @ 277VAC@CSA/UL. This snap action switch has an operating temperature range of -40 °C to 85 °C. The V7-7B17D8-201 snap action switch has a quick connect termination style. This product is 38.99 mm long, 29.79 mm tall and 10.16 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250@CSA/UL VDC.

Allied Electronics:
Miniature Switch; Basic; SPDT; Roller Lever; 0.81 Inches; QC 0.187 Inches

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect 11A 277VAC 250VDC 2.78N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect 11A 277VAC 250VDC 248.57VA 2.78N Screw Mount

MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 4A 125 Vac, 10 oz Maximum Operating Force, Roller Lever Actuator, UL Recognized, CSA, and VDE Certified, Quick Connect Termination

Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 4A 125 Vac, 10 oz Maximum Operating Force, ...

GOPHER:
Miniature Basic Switch SPDT 11 AMP .187IN QUICK CON SIDE MOUNT .81IN BRONZE ROLLER LEVER ACTUATOR, 10OZ O.F. MICRO SWITCH

Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 4A 125 Vac, 10 oz Maximum Operating Force, ...
