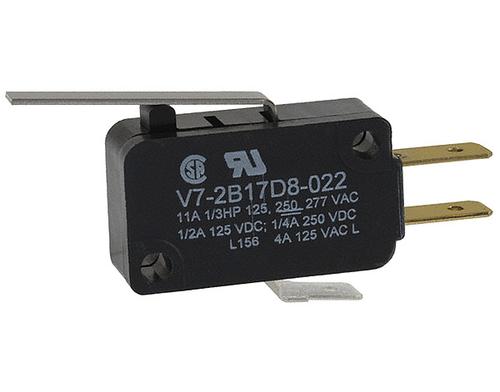

HONEYWELL V7-2B17D8-022 微动开关
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
贸泽:
Basic / Snap Action Switches 5A 1.08" LEVER
e络盟:
微动开关
艾睿:
The V7-2B17D8-022 snap-action switch from Honeywell is ideal when it comes to opening or closing your circuit. It has a SPDT configuration. This device has a maximum current rating of 11 A @ 277VAC@CSA/UL. This snap action switch has an operating temperature range of -40 °C to 85 °C. The V7-2B17D8-022 snap action switch has a quick connect termination style. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250@CSA/UL VDC. This product is 28.83 mm long, 26.21 mm tall and 10.16 mm deep.
Allied Electronics:
Miniature Switch, Basic, 11 Amps, 250 VAC, Straight Lever, SPDT, Quick Connect
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Straight Lever Quick Connect 11A 277VAC 0.4N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Straight Lever Quick Connect 11A 277VAC 250VDC 248.57VA 0.4N Screw Mount
Newark:
# HONEYWELL V7-2B17D8-022 Microswitch, V7 Series, SPDT, Quick Connect, 11 A, 277 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 11 A 125, 250, or 277 Vac, 35,6 mm [1.4 in] Straight Lever Actuator, 41 g [1.45 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 18
Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Closed SPNC, 21 A 125, 250, or 277 Vac, ENEC ...
GOPHER:
Miniature Basic Switch SPDT ON-ON 11 AMP .187IN QUICK CON SIDE MOUNT 1.40 LEVEL ACTUATOR MICRO SWITCH
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 11 A 125, 250, or 277 Vac, 35,6 ...
额定电压DC 125 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 11 A
触点类型 SPDT
针脚数 2
触点额定电流 11.0 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 277 VAC
安装方式 Chassis, Quick Connect
长度 28.8 mm
宽度 10.2 mm
高度 15.9 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
