微动开关, PIN 柱塞型, SPDT, 100MA, 125V
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
e络盟:
微动开关, PIN 柱塞型, SPDT, 100MA, 125V
艾睿:
Look no further for a switch to quickly open or close your circuit and use the V7-1S17D8 snap-action switch from Honeywell. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 125VAC@CSA/UL. This snap action switch has an operating temperature range of -40 °C to 85 °C. The V7-1S17D8 snap action switch has a quick connect termination style. This product is 39.4 mm long and 10.16 mm. The maximum AC voltage rating is 125 VAC.
Allied Electronics:
Basic Switch; Miniature; 100 mA @ 125VAC; Pin Plunger; SPDT Circuitry
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 0.1A 125VAC 1.47N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 0.1A 125VAC 1.47N Screw Mount
Newark:

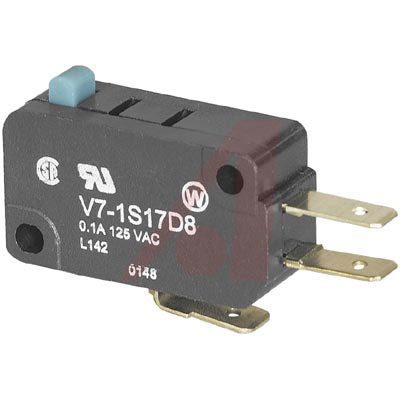

# HONEYWELL V7-1S17D8 Microswitch, V7 Series, SPDT, Quick Connect, 100 mA, 125 VAC
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 0.1A 125 Vac, Gold-Plated Contacts, 150g Maximum Operating Force, Pin Plunger Actuator, UL Recognized, CSA, and VDE Certified, Quick Connect Termination
Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 0.1A 125 Vac, Gold-Plated Contacts, 150g Maximum Operating ...
GOPHER:
Miniature Basic Switch SPDT ON-ON 100 MA .187 QUICK CONN SIDE MOUNT PLUNGER ACTUATOR MICRO SWITCH
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 0.1A 125 Vac, Gold-Plated Contacts, 150g Maximum Operating ...
接触器类型 Pin Plunger
额定电压AC 125 V
额定电流 100 mA
触点类型 SPDT
针脚数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 125 VAC
安装方式 Chassis, Quick Connect
封装 100
长度 39.4 mm
宽度 10.2 mm
高度 16.01 mm
封装 100
触点材质 Silver
重量 8.00 g
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
