HONEYWELL V7-1C17E9-207 微动开关, V7系列, SPDT, 快速连接, 15 A, 277 VAC, 250 VDC

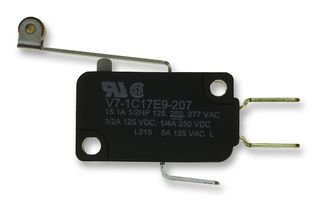

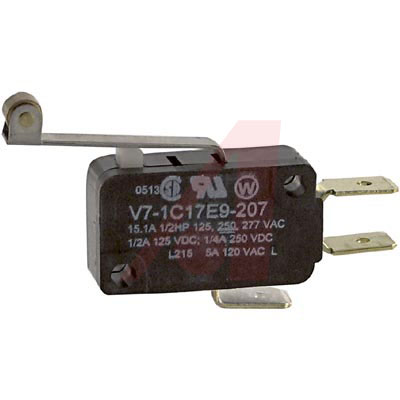

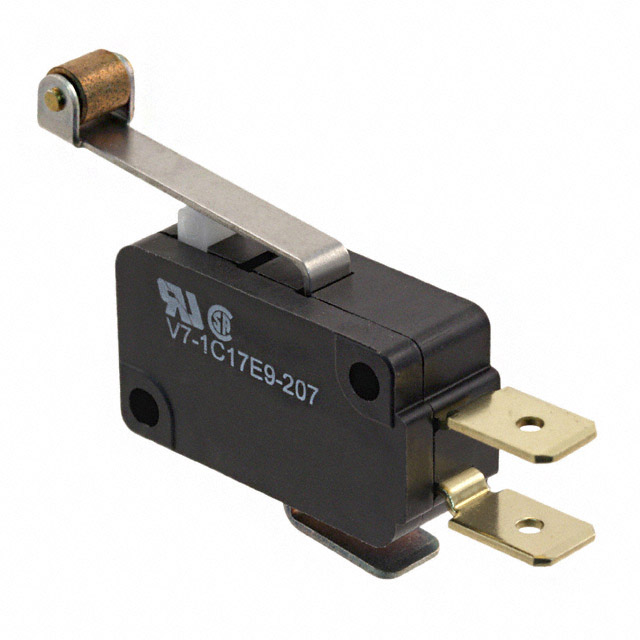

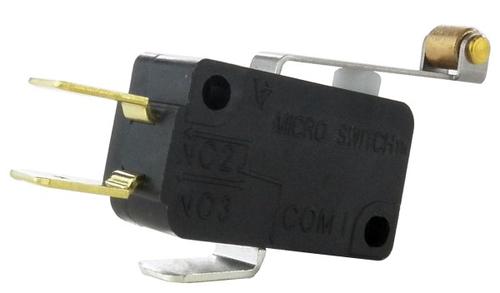

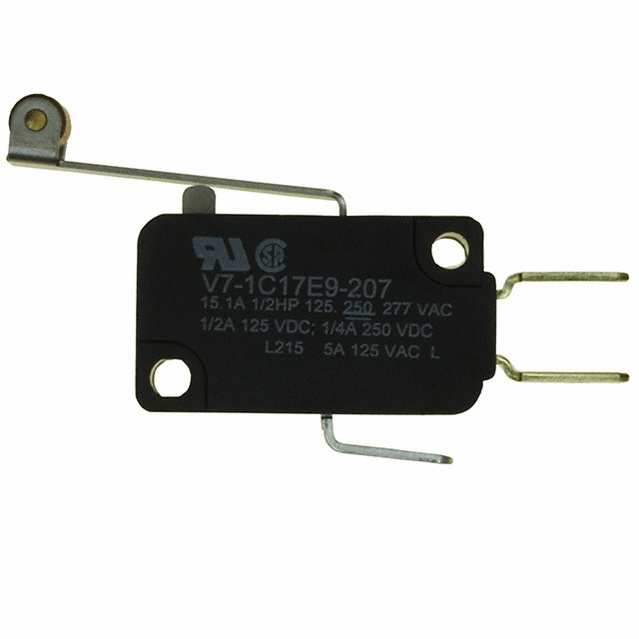

The is a single-pole double-throw SPDT miniature Basic Switch with roller lever actuator and quick connect terminations. The MICRO SWITCH™ V7 series premium basic switch comes with PCT polyester thermoplastic housing and silver-plated contact. It is used for simple or precision ON/OFF, end of limit, presence/absence, pressure, temperature and manual operator interface application needs.
- .
- Best suited for higher cost-of-failure applications
- .
- Designed for 100K operations at a full load or 10M for mechanical life
- .
- -40 to 82°C Operating temperature range
接触器类型 Roller Lever
额定电流 15 A
触点类型 SPDT
针脚数 2
触点额定电流 15.0 A
额定电流Max 15.1A @277VAC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 277 VAC
额定电压AC Max 277 V
安装方式 Screw Terminals
封装 207
长度 29.0 mm
宽度 10.2 mm
封装 207
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 85℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 医用, Computers & Computer Peripherals, 通信与网络, 消费电子产品, Consumer Electronics, Test & Measurement, Clock & Timing, 商业, 工业, 测试与测量, Industrial, Commercial, Communications & Networking, 时钟与计时, Medical, HVAC, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V7-1C17E9-207 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
D42L-R1XL Cherry | 功能相似 | V7-1C17E9-207和D42L-R1XL的区别 |
