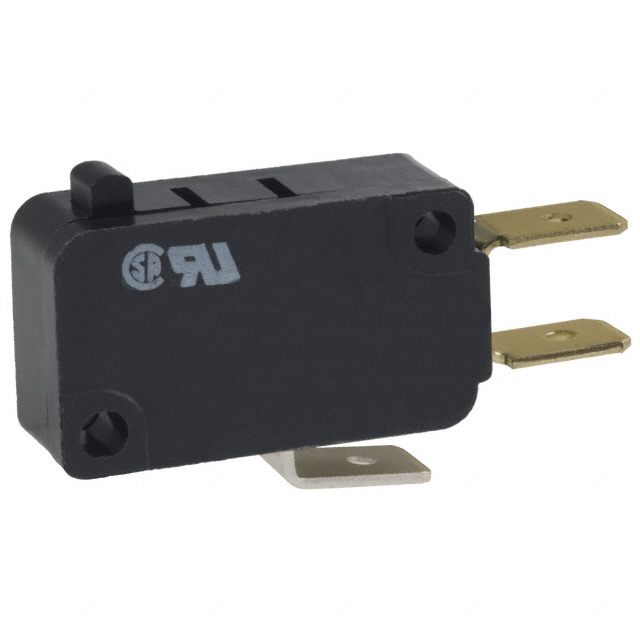

HONEYWELL V7-3E19E9 摁式微动开关, V7系列
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Open SPNO, 11 A 125, 250, or 277 Vac, Pin Plunger, 75 g [2.65 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 185 °F] Temperature Range, 6,35 mm x 0,81 mm [0.250 in x 0.032 in] Quick Connect Spread Termination, UL, CSA
Potential Applications:
Appliances
Vending machines
Timing devices
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment
Manually operated devices
Valves
Gaming equipment
Pressure switches
接触器类型 Pin Plunger
触点类型 SPDT
额定电流Max 10A @277VAC
额定功率Max 248.57 VA
工作温度Max 82 ℃
工作温度Min -40 ℃
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Chassis, Quick Connect
长度 28.83 mm
高度 15.88 mm
触点材质 Silver
重量 8.00 g
工作温度 -40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V7-3E19E9 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
V-10-1C25-K 欧姆龙 | 功能相似 | V7-3E19E9和V-10-1C25-K的区别 |
V-16-1C25 欧姆龙 | 功能相似 | V7-3E19E9和V-16-1C25的区别 |
V-15-1C6 欧姆龙 | 功能相似 | V7-3E19E9和V-15-1C6的区别 |
