MICRO SWITCH™ Subminiature Basic Switches: ZX Series, Single Pole Double Throw SPDT, 1A/3A 125VAC, ENEC 1A/3A 125VAC, Special Formed Lever Actuator, 50g [1.76 oz] Maximum Operating Force, Solder Termination, UL, cUL
’s V7 miniature switches are designed for long term-reliability in a rugged switch
packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple
or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies.
贸泽:
Basic / Snap Action Switches SPDT 5A/250VAC PIN PLUNGER
艾睿:

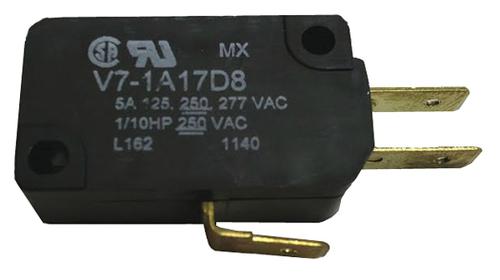

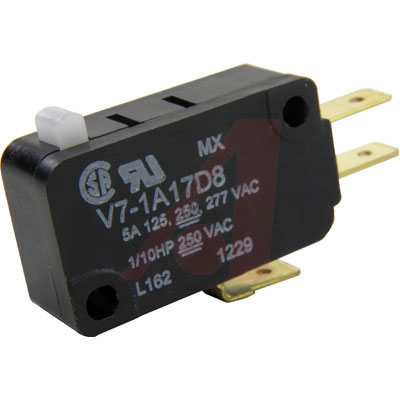

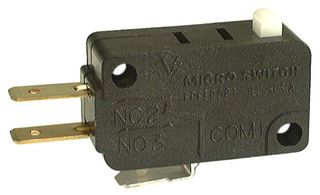

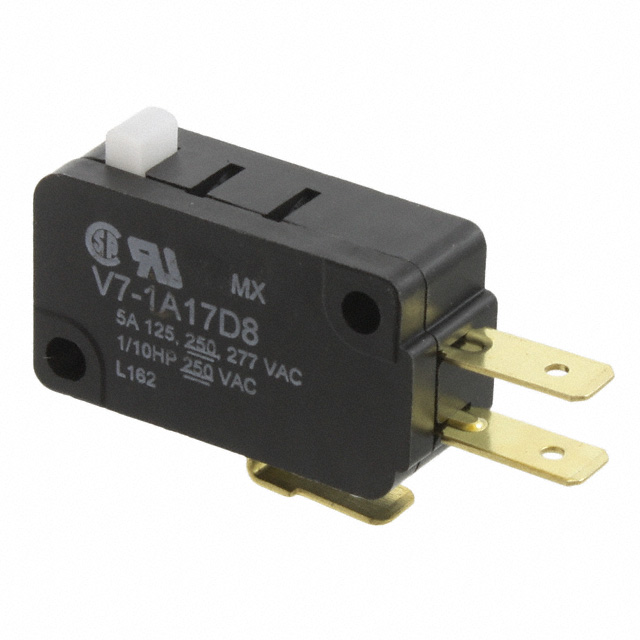

Only this V7-1A17D8 snap-action switch from Honeywell can open or close your circuit at the fastest speed. This device has a maximum current rating of 5 A @ 277VAC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -40 °C and a maximum of 82 °C. The V7-1A17D8 snap action switch has a quick connect termination style. This product is 38.99 mm long, 23.72 mm tall and 10.16 mm deep. The maximum AC voltage rating is 277 VAC.
Allied Electronics:
Basic Switch, SPDT, Pin Plunger, 5 Amps @ 250 VAC
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Plunger Quick Connect 5A 277VAC 74.57VA 1.47N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Plunger 5A 277VAC 74.57VA 1.47N Screw Mount Quick Connect
Newark:
# HONEYWELL V7-1A17D8 Microswitch, V7 Series, SPDT, Quick Connect, 5 A, 277 VAC
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 5 A 125, 250, or 277 Vac, Pin Plunger, 150 g [5.3 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 85 °C [-40 °F to 185 °F] Temperature Range, 4,75
Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 5 A 125, 250, or 277 Vac, Pin ...
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 5 A 125, 250, or 277 Vac, Pin ...
接触器类型 Pin Plunger
额定电压AC 125 V
额定电流 5 A
触点类型 SPDT
针脚数 2
额定电流Max 5A @277VAC
额定功率Max 74.57 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 VAC
安装方式 Quick Connect
长度 28.83 mm
高度 15.88 mm
触点材质 Silver
重量 8.00 g
工作温度 40℃ ~ 82℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
V7-1A17D8 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
V-10-1C25-K 欧姆龙 | 功能相似 | V7-1A17D8和V-10-1C25-K的区别 |
V-16-1C25 欧姆龙 | 功能相似 | V7-1A17D8和V-16-1C25的区别 |
V-15-1C6 欧姆龙 | 功能相似 | V7-1A17D8和V-15-1C6的区别 |
