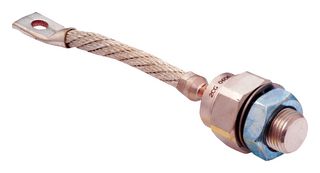

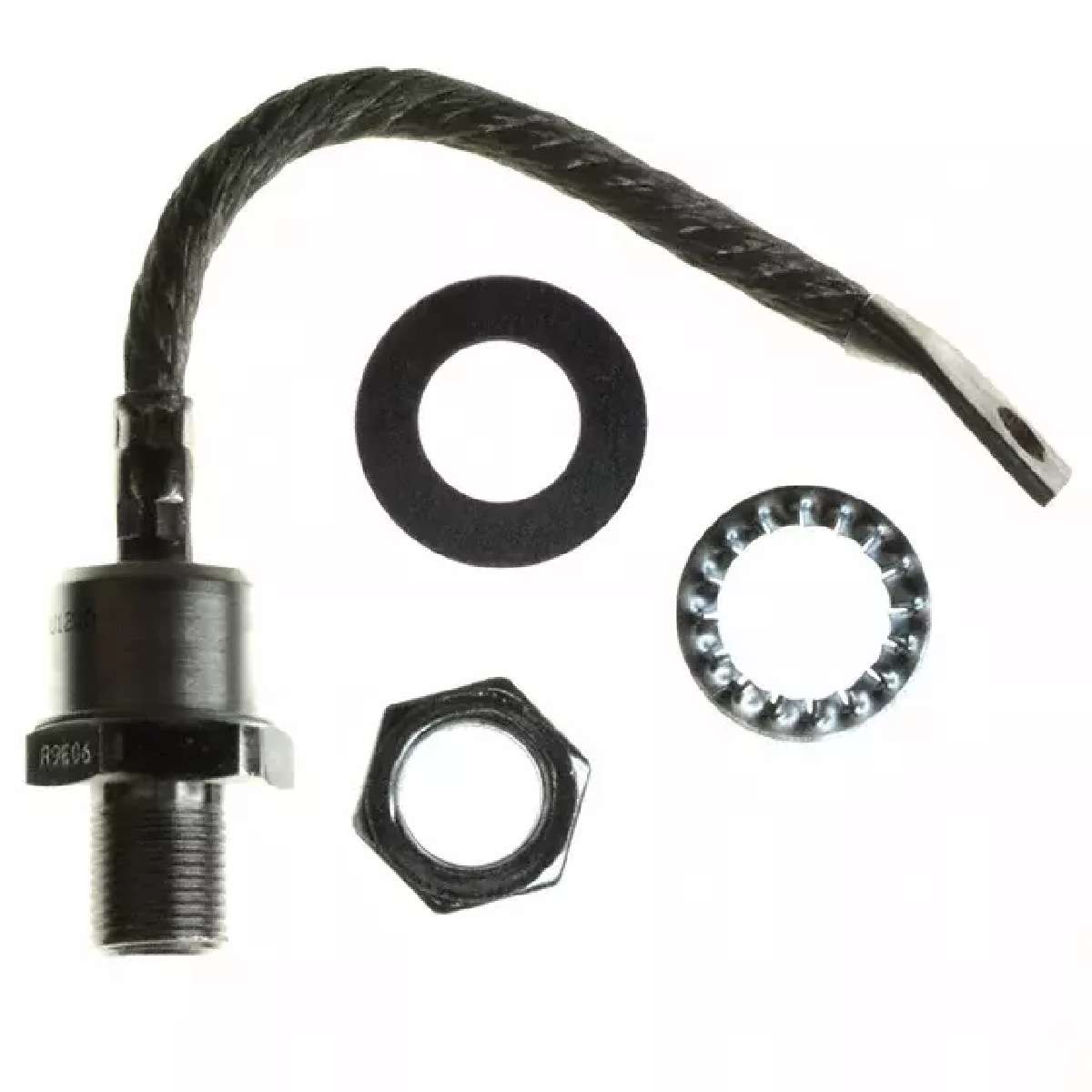

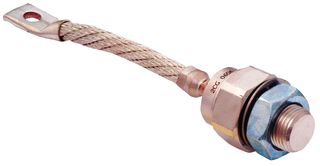

VISHAY VS-400UR120D 二极管模块, 1.2 kV, 400 A, 1.62 V, 单路, VS-400U Series 新
The is a reverse polarity standard Recovery Device for machine tool controls and high power drives.
艾睿:
Diode Switching 1.2KV 400A 2-Pin DO-9
Allied Electronics:
BIPLR DIS MOD : XX1200V 400.000A STUD ROUND JUNCTION
Newark:
# VISHAY VS-400UR120D Diode Module, 1.2 kV, 400 A, 1.62 V
正向电压 1.62 V
热阻 0.15K/W RθJC
正向电流 400 A
正向电压Max 1.62 V
工作温度Max 200 ℃
工作温度Min -40 ℃
工作结温Max 200 ℃
安装方式 Chassis
封装 DO-205AB
长度 149.9 mm
宽度 31.75 mm
高度 31.75 mm
封装 DO-205AB
工作温度 -40℃ ~ 200℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Maintenance & Repair, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
