40A采用工业标准封装类型的多用途、高效标准恢复功率二极管。### 二极管和整流器,Vishay Semiconductor
**Features:**
* Wide Current Range
* High Surge Current Capabilities
* Stud Cathode and Stud Anode Version
* Standard JEDEC Types
* RoHS Compliant
* Designed and Qualified for Industrial Level
**Applications:**
* Converters
* Power Supplies
* Machine Tool Controls
* High Power Drives
得捷:
DIODE GEN PURP 1.6KV 400A DO205
艾睿:
Diode Switching 1.6KV 400A 2-Pin DO-9
Newark:

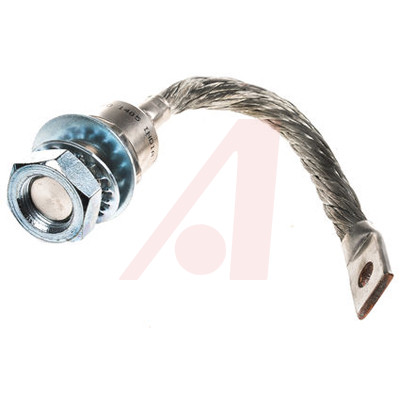

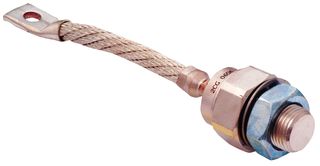

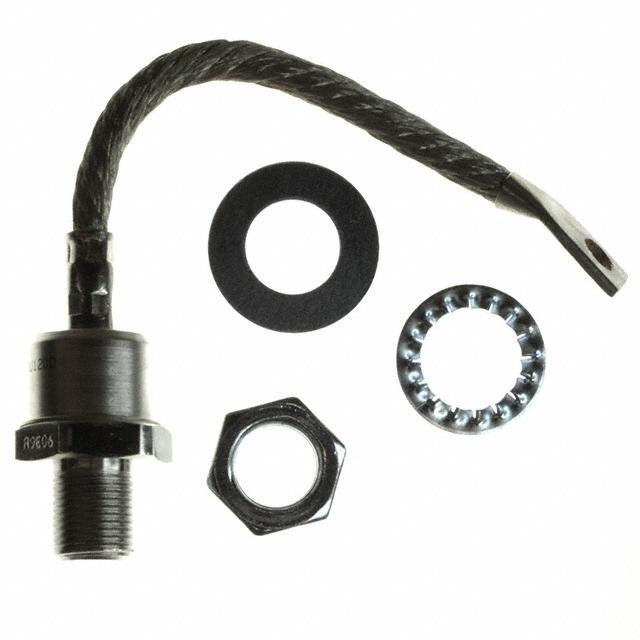

# VISHAY VS-400UR160D Diode Module, 1.6 kV, 400 A, 1.62 V
正向电压 1.62 V
热阻 0.15K/W RθJC
正向电流 400 A
最大正向浪涌电流(Ifsm) 8.6 kA
正向电压Max 1.62 V
正向电流Max 400 A
工作温度Max 200 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 200℃
工作结温Max 200 ℃
安装方式 Chassis
引脚数 2
封装 DO-205AB
长度 36.96 mm
宽度 32 mm
封装 DO-205AB
工作温度 -40℃ ~ 200℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
