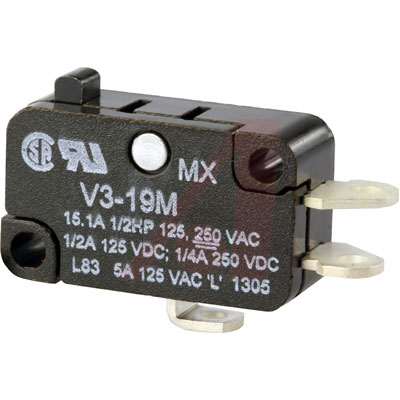

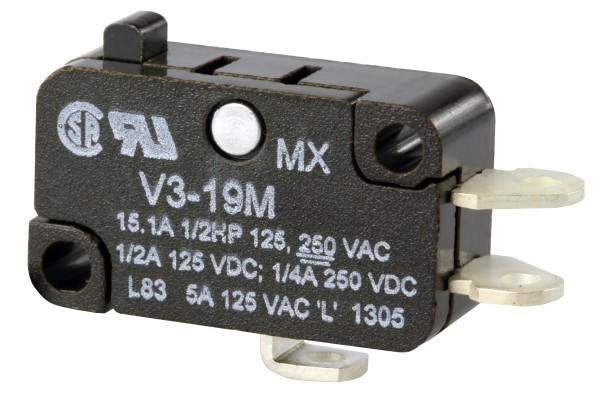

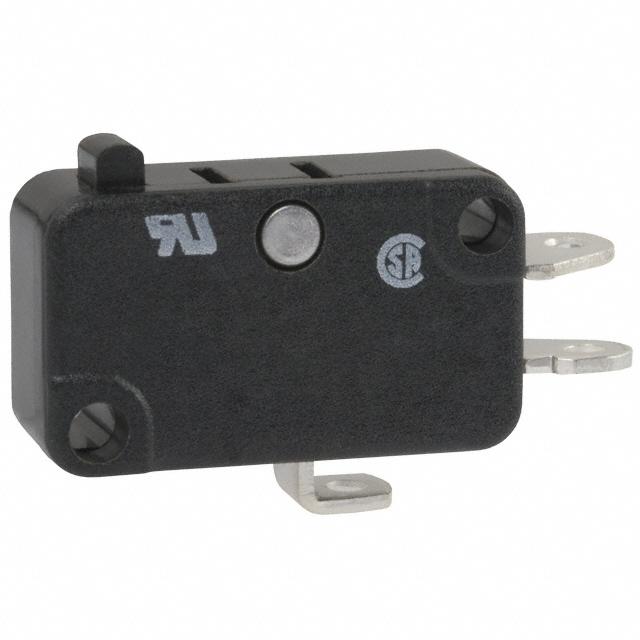

HONEYWELL V3-19M 微动开关, V3系列, SPDT, 焊接, 15.1 A, 250 VAC, 250 VDC
The is a 1-pole miniature Limit Switch with pin plunger actuator and solder terminals.
e络盟:
微动开关
艾睿:
Look no further for a switch to quickly open or close your circuit and use the V3-19M snap-action switch from Honeywell. It has a SPDT configuration. This device has a maximum current rating of 15.1 A @ 250VAC. The V3-19M snap action switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC. This product is 34.69 mm long, 22.06 mm tall and 10.2 mm deep.
Allied Electronics:
Limit Switch, Basic, SPDT, 15A @ 125VAC, Round, Pin Plunger
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Plunger Solder Lug 15.1A 250VAC 250VDC 3.89N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Plunger Solder Lug 15.1A 250VAC 250VDC 3.89N Screw Mount
Newark:
# HONEYWELL V3-19M Microswitch, V3 Series, SPDT, Solder, 15.1 A, 250 VAC, 250 VDC
MASTER:
MICRO SWITCH™ Miniature Basic Switches: V3 Series, Single Pole Double Throw SPDT, 5 A 125Vac, [6 - 14 oz] Operating Force, Metric Mounting Holes, Standard Solder Lug Terminals
Online Components:
MICRO SWITCH™ Door Switches: AC Series, Single Pole Double Throw SPDT, 15.1 A 125/250 Vac, 3 Position Push-Momentary, Pull-Maintained, 6-32 ...
Electro Sonic:
MICRO SWITCH™ Miniature Basic Switches: V3 Series, Single Pole Double Throw SPDT, 5 A 125Vac, [6 - 14 oz] Operating ...
额定电压DC 125 V
接触器类型 Pin Plunger
额定电压AC 125 V
额定电流 15 A
触点类型 SPDT
额定电流Max 15.1A @250VAC
额定电压 125 VAC
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Chassis, Solder Lug
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
