HONEYWELL V3-1 微动开关, V3系列, SPDT, 拧紧, 15.1 A, 250 VAC, 250 VDC

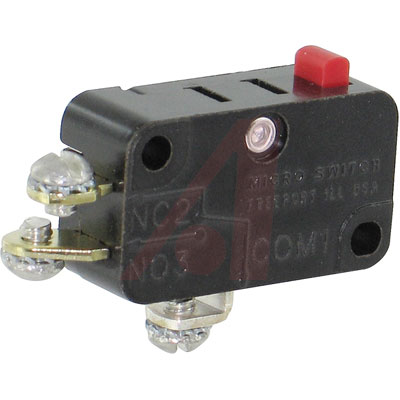

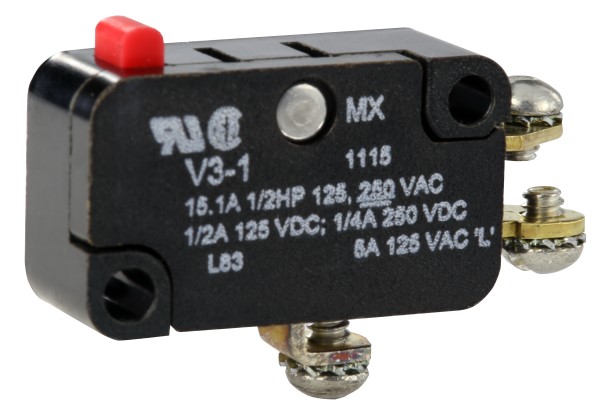

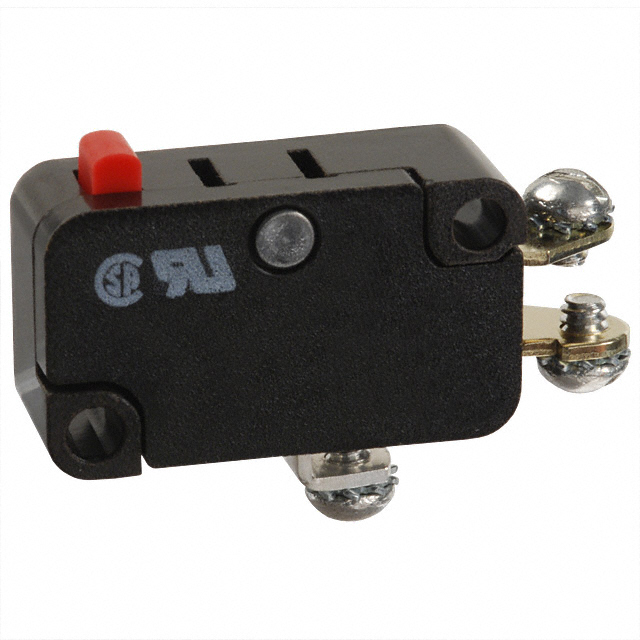

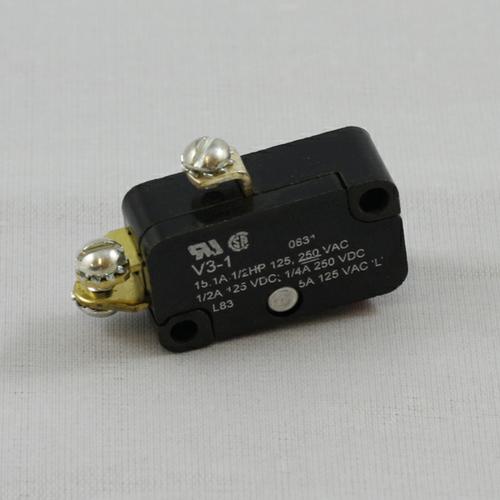

The is a single-pole double-throw SPDT cut-a-way Miniature Basic Switch with a plunger actuator and screw terminations. This V3 series switch features high electrical capacity and long life. The size and shape of the switch meets design requirements in all types of applications. This switch is made up of sturdy aluminium rivet holds cover to case, water-resistant phenolic case and plunger, long life beryllium-copper spring.
- .
- Sensitive differential as low as 0.006" maximum
- .
- High temperature construction for use up to 316°C
额定电压DC 125 V
接触器类型 Pin Plunger
额定电压AC 125 V
额定电流 10 A
触点类型 SPDT
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 15.1A @250VAC
额定功率Max 372.85 VA
额定电压 125 VAC
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Screw Terminals
长度 27.79 mm
宽度 27.7 mm
高度 15.88 mm
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
