VDMY10A0

VISHAY  VDMY10A0  显示器, 7段, 10MM, 绿色

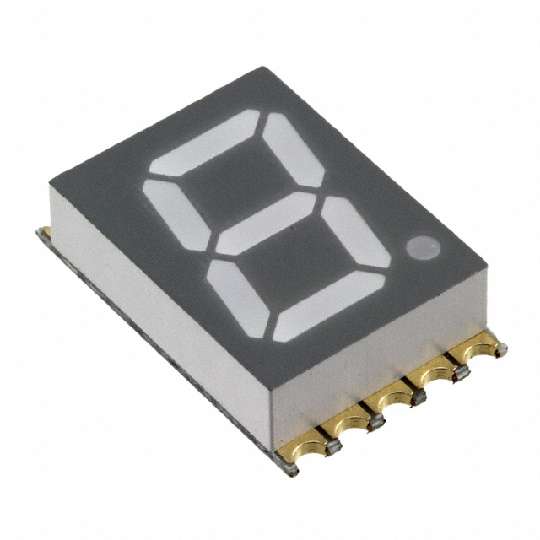

The from Vishay is a VDM.10.0 series 10mm SMD seven segment LED display in a very compact package. This LED utilizes AlInGaP on GaAs chip technology. It is evenly lighted segments with grey package surface. It is suitable for DC, high peak current and used in panel meters, point-of-sale terminals and control units.

.

Common anode circuitry

.

Yellow colour LED

.

Luminous intensity of 2750µcd typ at IF = 1mA

.

Wavelength of 589nm typ at IF = 20mA

.

Maximum forward voltage of 2.6V at IF = 20mA

.

Untinted segments

.

Wide viewing angle, angle of half intensity is ±50°

.

Power dissipation per segment is 70mW
