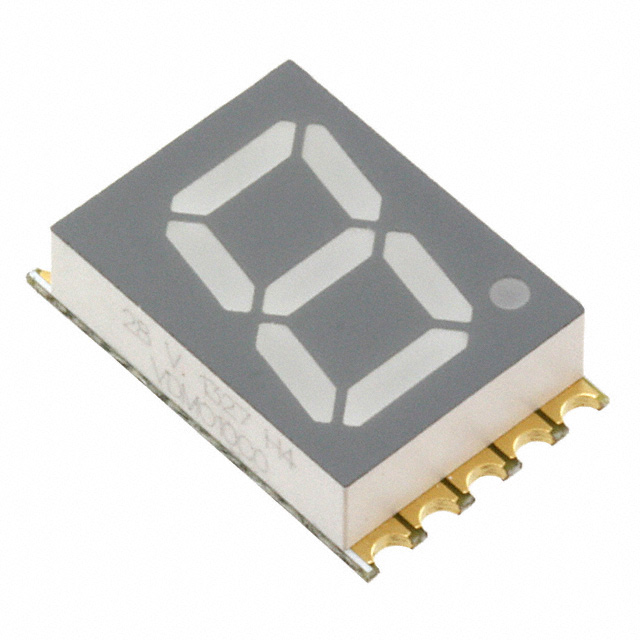

VDMO10C0

VDMO10 系列 淡橘色 7 段 605 nm 表面贴装 显示屏 10 mm 共阴极

The from Vishay is a VDM.10.0 series 10mm SMD seven segment LED display in a very compact package. This LED utilizes AlInGaP on GaAs chip technology. It is evenly lighted segments with grey package surface. It is suitable for DC, high peak current and used in panel meters, point-of-sale terminals and control units.

.

Common cathode circuitry

.

Soft orange colour LED

.

Luminous intensity of 650µcd typ at IF = 1mA

.

Wavelength of 605nm typ at IF = 20mA

.

Maximum forward voltage of 2.6V at IF = 20mA

.

Untinted segments

.

Wide viewing angle, angle of half intensity is ±50°

.

Power dissipation per segment is 70mW
