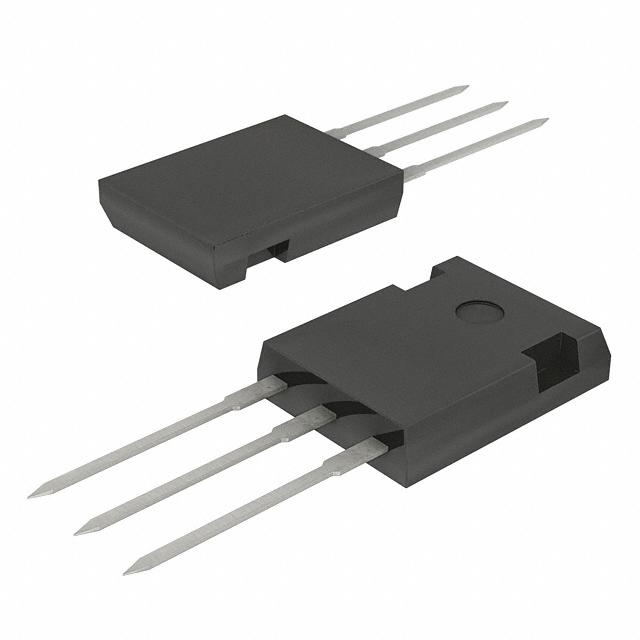

VS-APH3006-F3

VISHAY  VS-APH3006-F3  快速/超快功率二极管, 超快, 单, 600 V, 30 A, 2.65 V, 35 ns, 180 A

The is a Hyperfast™ Recovery Rectifier designed with optimized performance of forward voltage drop, Hyperfast™ recovery time and soft recovery. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in PFC boost stage in the AC/DC section of SMPS, inverters or as freewheeling diodes. The extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.

.

Designed and qualified according to JEDEC®-JESD47
