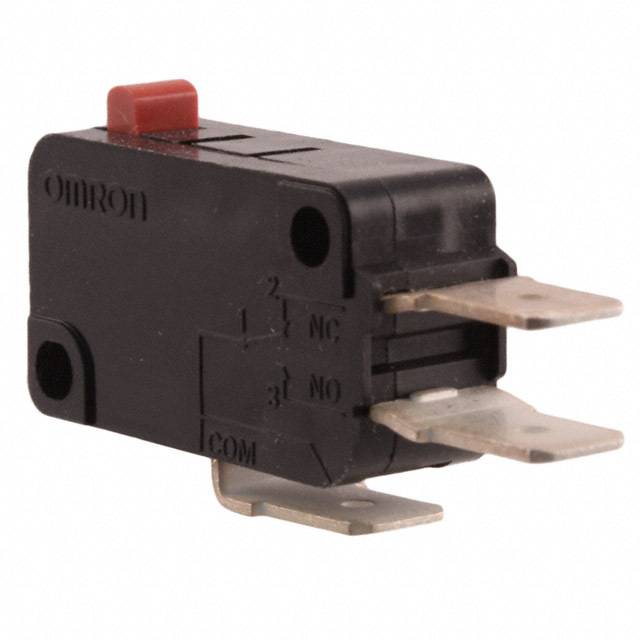

Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 21A 250VAC 250VDC 372.85VA 3.92N Screw Mount
Long service life, high vibration and shock resistance, and easy installation. Solder/quick-connect #187 terminals. Thermoset resin body allows wide operating temperature range of –25°C to 80°C –13° to 176°F. Body Size: 27.8 × 15.9 × 10.3 mm. Heavy-Duty Load: SPDT contacts non-inductive, resistive 15 A @ 250 VAC. UL Recognized and CSA Approved.
艾睿:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 21A 250VAC 250VDC 372.85VA 3.92N Screw Mount
Allied Electronics:
SW MINI SPDT 21A PIN PLNGR 250V
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 21A 250VAC 250VDC 3.92N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 21A 250VAC 250VDC 372.85VA 3.92N Screw Mount
MASTER:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 21A 250VAC 250VDC 372.85VA 3.92N Screw Mount
Online Components:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 21A 250VAC 250VDC 372.85VA 3.92N Screw Mount
Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 21A 250VAC 250VDC 372.85VA 3.92N Screw Mount
接触器类型 Pin Plunger
触点类型 SPDT
额定电流Max 21A @250VAC
工作温度Max 80 ℃
工作温度Min -25 ℃
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Screw, Quick Connect
长度 29.4 mm
宽度 10.3 mm
高度 21.9 mm
触点材质 Silver Alloy
工作温度 -25℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V-21-1C6 Omron 欧姆龙 | 当前型号 | 当前型号 |
V15T16-EZ200-K 霍尼韦尔 | 功能相似 | V-21-1C6和V15T16-EZ200-K的区别 |
V7-1C13E9 霍尼韦尔 | 功能相似 | V-21-1C6和V7-1C13E9的区别 |
V7-1B19E9 霍尼韦尔 | 功能相似 | V-21-1C6和V7-1B19E9的区别 |
