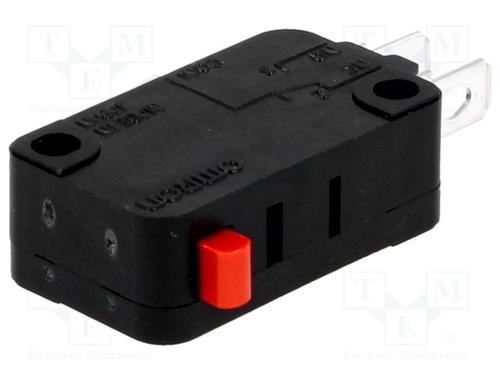

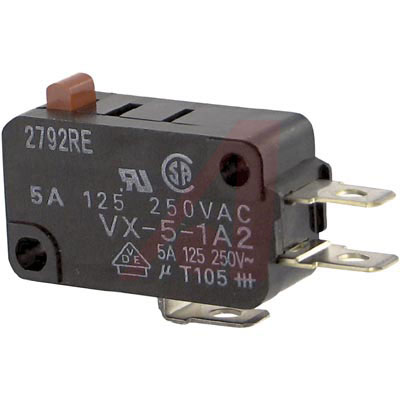

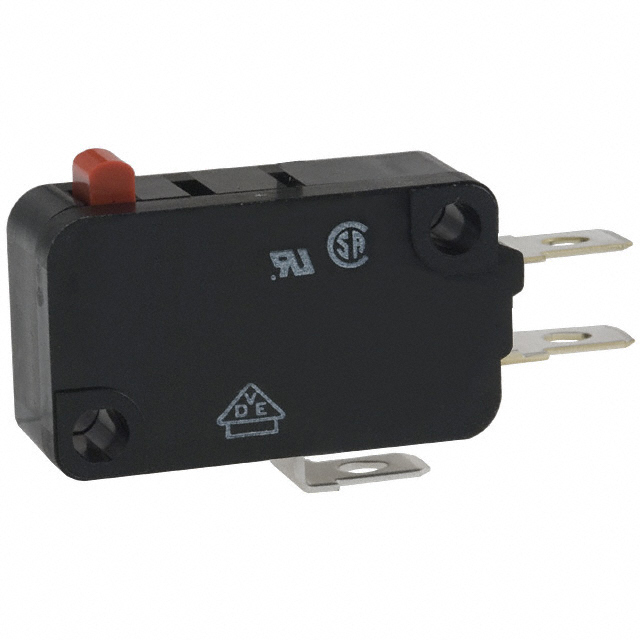

VX-5-1A2

基本/快动开关 Pin Plunger Solder/#187 comm 25g

** Miniature Snap Action Switch **—** 5 A, 0.1 A**

* Compact Snap Action Switch with Low Force Operation

* Internal Hinge Lever Mechanism Assures Outstanding Contact Reliability

* RoHS Compliant

欧时:
Gap fill

贸泽:
基本/快动开关 Pin Plunger Solder/#187 comm 25g

艾睿:
This VX-5-1A2 snap-action switch from Omron can be actuated with very little physical force. This device has a maximum current rating of 5 A @ 250VAC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 80 °C. The VX-5-1A2 snap action switch has a solder termination style. This product is 37.8 mm long, 21.6 mm tall and 10.3 mm deep. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
SWITCH; MINIATURE; SNAP ACTION; 5A; PIN PLUNGER; SOLDER TERMINAL; OF MAX. 25G

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 5A 250VAC 0.25N Screw Mount Solder

TME:
Microswitch SNAP ACTION; without lever; SPDT; 5A/250VAC; ON-ON

MASTER:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 5A 250VAC 0.25N Screw Mount Solder

Online Components:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 5A 250VAC 0.25N Screw Mount Solder

Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 5A 250VAC 0.25N Screw Mount Solder
