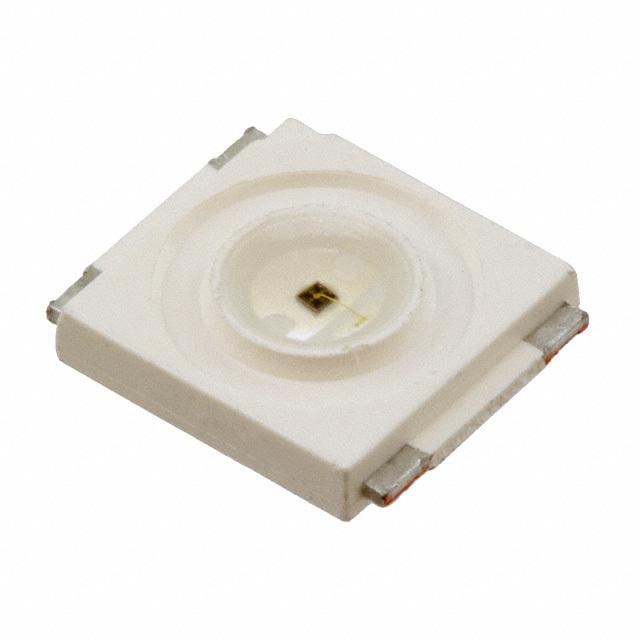

VISHAY VSMY7852X01-GS08 红外发光二极管, 850NM, SMD
The is a 850nm SurfLight™ portfolio Infrared Emitting Diode based on surface emitter technology. It is moulded in low thermal resistance Little Star package. A 20mil chip provides outstanding low forward voltage and allows DC operation of the device up to 250mA.
- .
- High speed
- .
- High reliability
- .
- High radiant power
- .
- High radiant intensity
- .
- ϕ = ±60° Angle of half sensitivity
- .
- Designed for high drive currents - up to 250mA DC and up to 1.5A pulses
额定功率 500 mW
正向电压 1.8 V
波长 850 nm
视角 120°
峰值波长 850 nm
耗散功率 500 mW
上升时间 8 ns
测试电流 1000 mA
正向电流 250 mA
正向电压Max 2.5 V
正向电流Max 250 mA
下降时间 10 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6 mm
高度 1.4 mm
封装 SMD-2
工作温度 -40℃ ~ 100℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Consumer Electronics, Industrial, Signal Processing, Automotive, Automation & Process Control, Communications & Networking, 车用, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
