VISHAY VSMY98545DS 红外发射器, 90 °, SMD, 1 A, 3.6 V, 30 ns, 30 ns

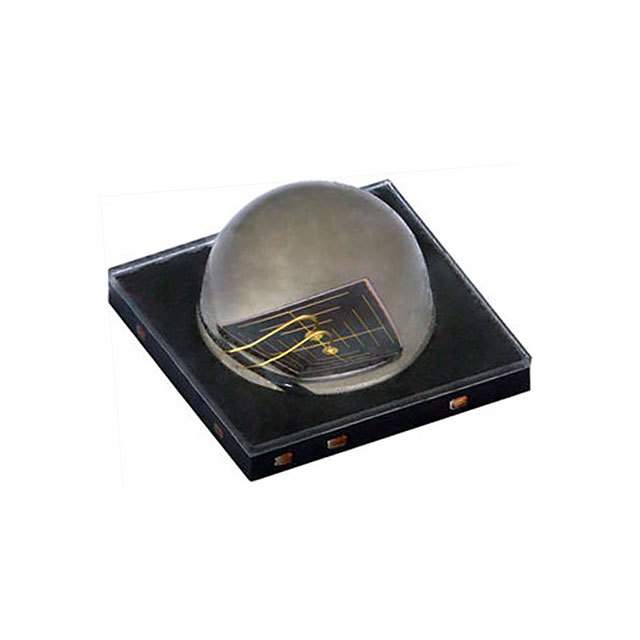

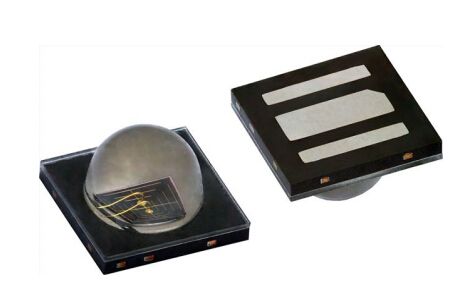

The is a 850nm SurfLight™ portfolio Infrared Emitting Diode based on surface emitter technology. It is moulded in low thermal resistance SMD package with lens. A 42mil chip provides outstanding radiant intensity and allows DC operation of the device up to 1A. Superior ESD characteristics are ensured by an integrated Zener diode.
- .
- High speed
- .
- High radiant power
- .
- High radiant intensity
- .
- ϕ = ±45° Angle of half sensitivity
- .
- Zener diode for ESD protection up to 2kV
- .
- Designed for high drive currents - up to 1A DC and up to 5A pulses
上升/下降时间 0.030 µs
正向电压 3.2 V
波长 850 nm
视角 90°
峰值波长 850 nm
耗散功率 3600 mW
上升时间 30 ns
测试电流 1000 mA
正向电流 1 A
正向电压Max 3.6 V
正向电流Max 1000 mA
下降时间 30 ns
工作温度Max 110 ℃
工作温度Min -40 ℃
耗散功率Max 3600 mW
安装方式 Surface Mount
引脚数 3
封装 SMD-2
高度 2.24 mm
封装 SMD-2
工作温度 -40℃ ~ 110℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Sensing & Instrumentation, Consumer Electronics, Automation & Process Control, Communications & Networking, Signal Processing, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
