VNLD5090 系列 5.5 V 90 mOhm 25 A OMNIFET III 全保护 低边 驱动器
For a safe and easy method of switching using high levels of currents and voltages, use STMicroelectronics" low side power switch. This charge controller has 2 outputs. It features 0.09Max Ohm switch on resistance. This device has a supply current of 0.03 mA and a minimum output current of 13 A. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This charge controller has an operating temperature range of -40 °C to 150 °C.
输出接口数 2
输出电流 13 A
供电电流 0.03 mA
针脚数 8
漏源极电阻 90 mΩ
输出电流Max 13 A
输入数 2
下降时间 2.7 µs
下降时间Max 2700 ns
上升时间Max 10000 ns
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 5.5 V
安装方式 Surface Mount
引脚数 8

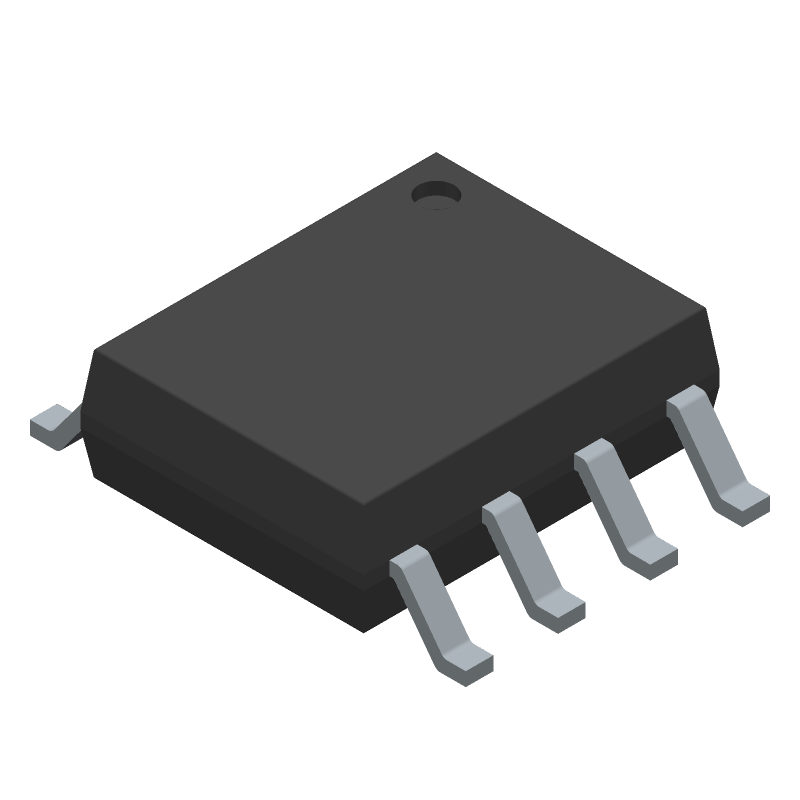

封装 SO-8
封装 SO-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
